DTE20A

DTE20A

Product Specifications:


Part Number: DTE20A

Description: Door 2000 x 1000mm w/ acrylic window

Height: 79.00"

Width: 40.50"

Depth: 2.00"

Price Code: Q1

List Price: $1,181.78

Catalog Page: 1500

Est. Ship Weight: 58.00 lbs

Acrylic window: 1780 X 790mm

Download CAD PackageAdd to Bill of MaterialPrint Page

Construction

  • Carbon Steel
  • Galvanized Inner Stiffener Frame
  • Door opens 120 degree
  • Door inchangeable right or left swing.
  • Pour in place oil & water resistant gasket
  • 4-point latching mechanism
  • 3mm double bit key entry

Application

Enclosure components for OK Series Modular Enclosure designed to protect electrical and electronic equipment in industrial applications. Providing protection from dirt, dust, moisture, oil and other contaminants.

Finish

RAL 7035 light gray, textured powder coat finish

Industry Standards - (IS24)

  • UL Component Recognized

Similar Part Numbers

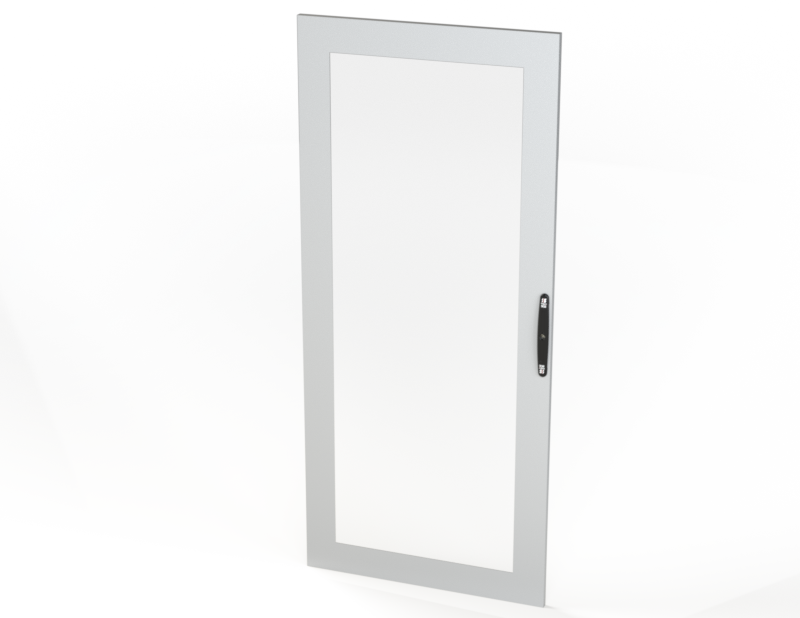

DTE188

DTE188
Door 1800 x 800mm w/ acrylic window

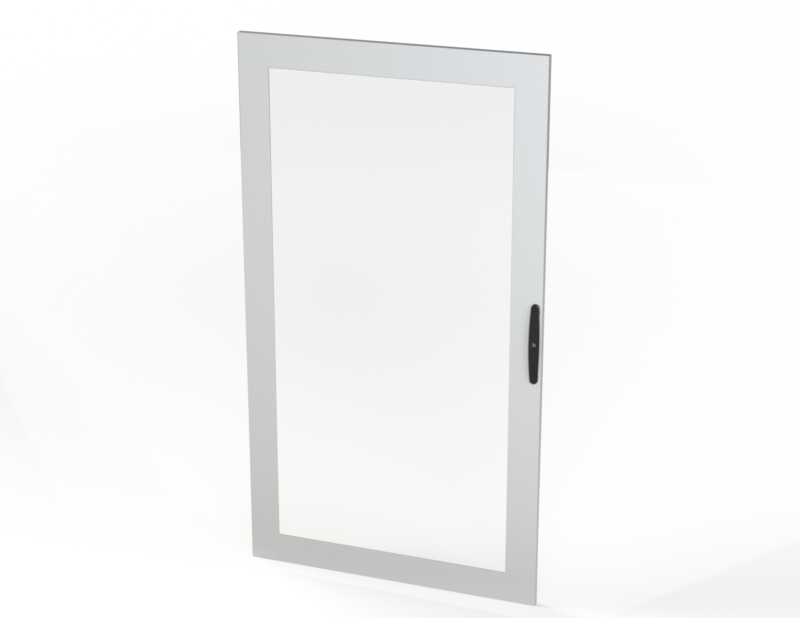

DTE18A

DTE18A
Door 1800 x 1000mm w/ acrylic window

DTE208

DTE208
Door 2000 x 800mm w/ acrylic window

DTE228

DTE228
Door 2200 x 800mm w/ acrylic window.

DTE22A

DTE22A
Door 2200 x 1000mm w/ acrylic window.
