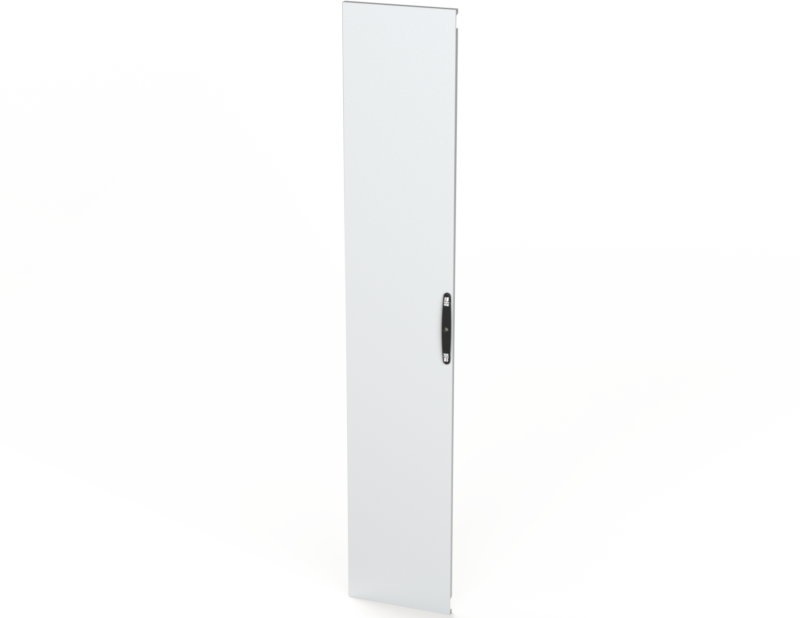

DBE224S

DBE224S

Product Specifications:


Part Number: DBE224S

Description: Left Disc. Door 2200 x 400 mm

Height: 85.98"

Width: 15.49"

Depth: 0.87"

Price Code: Q1

List Price: $524.99

Catalog Page: 999

Est. Ship Weight: 44.00 lbs

Download CAD PackageAdd to Bill of MaterialPrint Page

Construction

  • Carbon Steel
  • Galvanized Inner Stiffener Frame
  • Door opens 120°
  • Door interchangeable right or left swing
  • Pour in place oil & water resistant gasket
  • 4-point latching mechanism
  • 3mm double bit key entry
  • M6 ground stud top and bottom

Application

Solid Door (in conjunction with 200mm DBED Disconnect Door) for OK Series disconnect enclosures.

Finish

RAL 7035 light gray, textured powder coat finish

Industry Standards - (IS24)

  • UL Component Recognized

Similar Part Numbers

DBE204S

DBE204S
Left Disc. Door 2000 x 400 mm

DBE206S

DBE206S
Left Disc. Door 2000 x 600 mm

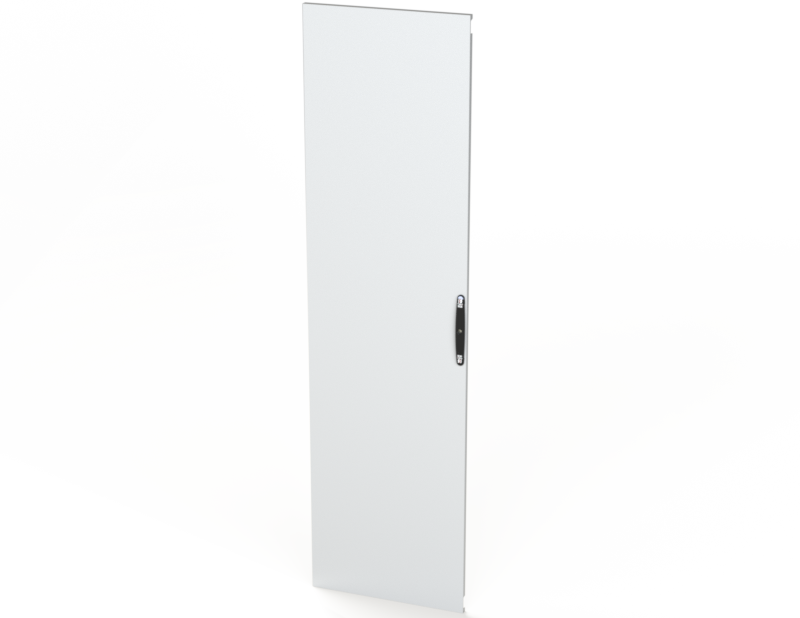

DBE226S

DBE226S
Left Disc. Door 2200 x 600 mm
