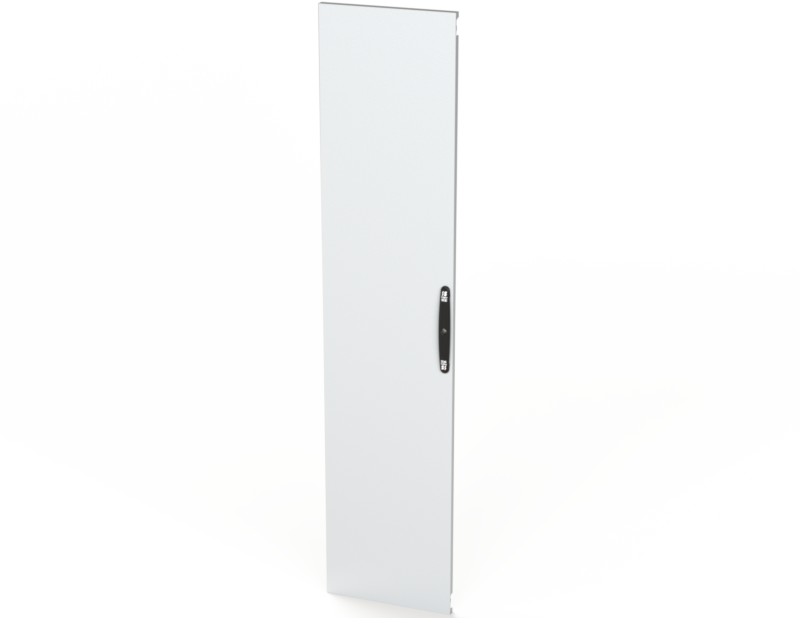

DBE184S
Product Specifications:
Part Number: DBE184S
Description: Left Disc. Door 1800 x 400 mm
Height: 70.24"
Width: 15.49"
Depth: 0.87"
Price Code: Q1
List Price: $449.76
Catalog Page: 999
Est. Ship Weight: 37.00 lbs
Construction
- Carbon Steel
- Galvanized Inner Stiffener Frame
- Door opens 120°
- Door interchangeable right or left swing
- Pour in place oil & water resistant gasket
- 4-point latching mechanism
- 3mm double bit key entry
- M6 ground stud top and bottom
Application
Solid Door (in conjunction with 200mm DBED Disconnect Door) for OK Series disconnect enclosures.
Finish
RAL 7035 light gray, textured powder coat finish
Industry Standards - (IS24)
- UL Component Recognized
