SCE-904820FSD
Product Specifications:
Part Number: SCE-904820FSD

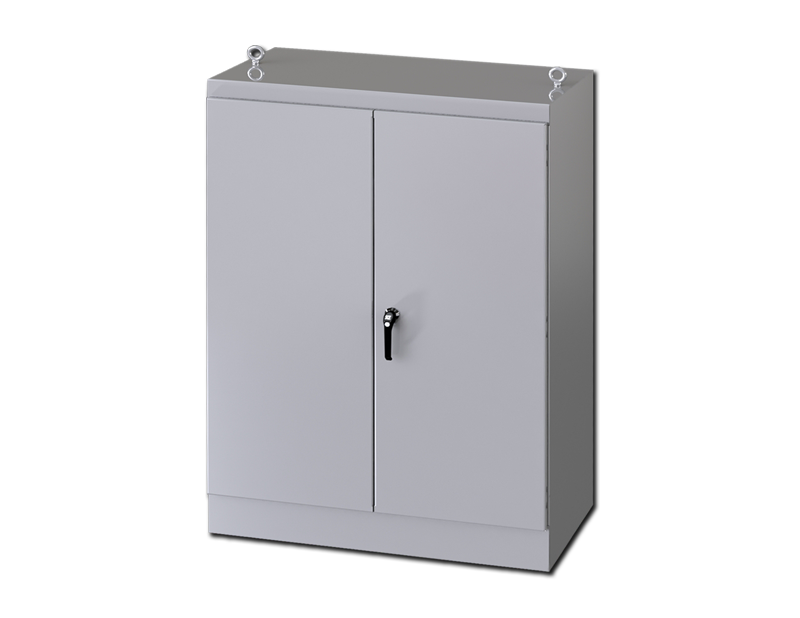

Description: FSD Enclosure
Height: 90.00"
Width: 48.00"
Depth: 20.00"
Price Code: A2
List Price: $2,828.20
Catalog Page: 136
Est. Ship Weight: 549.00 lbs
Construction
- 0.104 In. carbon steel.
- Concealed hinges.
- Two-Door Single Access.
- Removable and interchangeable doors.
- Seams continuously welded and ground smooth.
- Lifting eyes for easy handling.
- Black zinc die cast keylocking/padlocking handle.
- 3-point latching mechanism.
- Latch rods have ramp shoes for easier door closing.
- Flange trough collar around all sides of door opening.
- Removable print pocket provided on door with 3-point latch.
- Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles.
- Pour in place oil & water resistant gasket
- Ground stud on door.
- Provisions for light kits.
- Holes plugs provided to seal holes in bottom of enclosure.
Application
Designed to house a variety of electrical and electronic controls and instruments. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provides protection from dust, dirt, water and oil. For outdoor application a drip shield and drain vent is recommended.
For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
ANSI-61 gray finish inside and out. Optional sub-panels are powder coated white.
Industry Standards - (IS3)
- NEMA Type 3R, 12 and Type 13
- UL Listed Type 3R and 12
- CSA Type 3R and 12
- IEC 60529
- IP 55
Notes
Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
Optional Accessories
SCE-60P24F1
Subpanel, Full
SCE-60P24F2
Subpanel, Half
SCE-60P48F1
Subpanel, Full
SCE-60RA19TH
Angle, Rack
SCE-60RP24F5
Angle, Rack
SCE-72P24F1
Subpanel, Full
SCE-72P24F2
Subpanel, Half
SCE-72P48F1
Subpanel, Full
SCE-72P48F2
Subpanel, Half
SCE-72RA19TH
Angle, Rack
SCE-72RP24F5
Angle, Rack

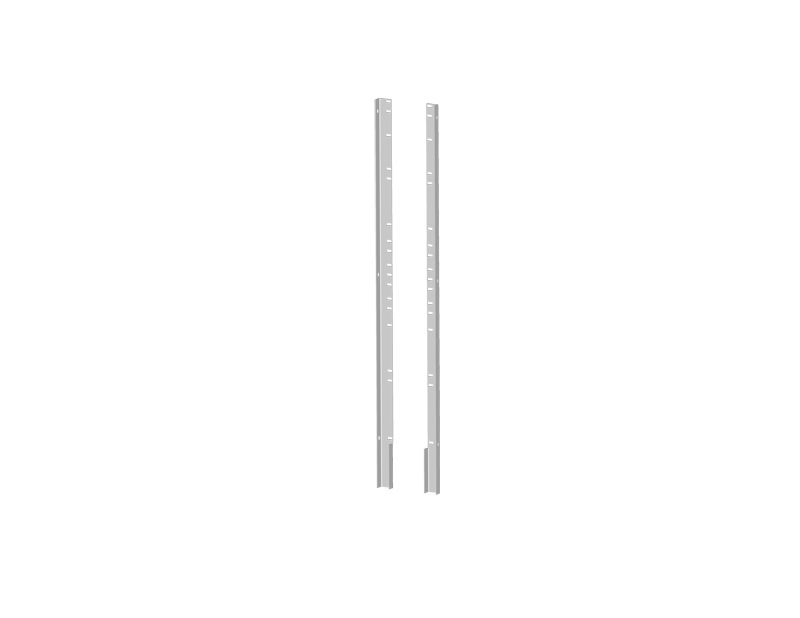

SCE-90FSHDPS
Panel Support Heavy Duty
SCE-90P24F1
Subpanel, Full
SCE-90P24F2
Subpanel, Half
SCE-90RA19TH
Angle, Rack
SCE-90RP24F5
Angle, Rack
SCE-90RP24F6
Angle, Rack
