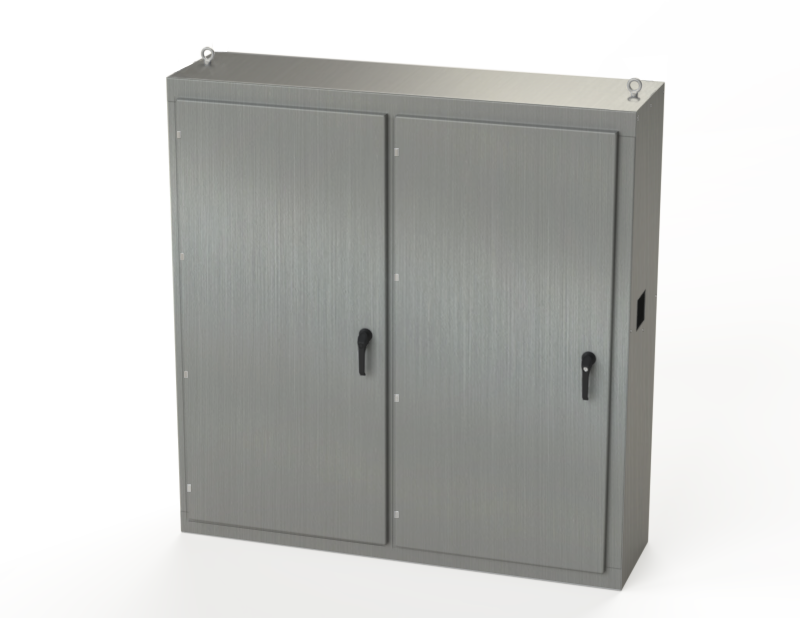

SCE-N68EXD6618SS
Product Specifications:
Part Number: SCE-N68EXD6618SS
Description: S.S. 2DR Enc. Both sides Solid- Provisions for EXD
Height: 68.00"
Width: 66.50"
Depth: 18.00"
Price Code: S2
List Price: $13,596.24
Catalog Page: 999
Est. Ship Weight: 0.00 lbs
Construction
- Provisions for external disconnect.
- Both sides solid.
- .104 in stainless steel Type 304.
- Seams coninously welded and ground smooth.
- Flange trough collar around all sides of door opening
- Body stiffeners in large enclosures for extra rigidity
- Heavy duty lifting eyes anchor into reinforced top.
- Concealed hinges.
- 3-point latching mechanism
- End of latch rods have ramp shoes for easier door closing.
- Panel supports.
- Pour in place oil & water resistant gasket
- Optional panels mount to collar studs.
- Ground stud on door & body
- Provisions for light kit.
- Black zinc die cast coinproof/padlocking handle on door.
Application
Designed to house a variety of electrical and electronic controls and instruments, and most standard type disconnects. Provides protection from dust, dirt, water and oil. Provisions for external disconnect.
Finish
#4 brushed finish on all exterior surfaces. Optional subpanels powder coated white or galvanized.
Industry Standards - (IS6)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
