SCE-VTC5T25B
Product Specifications:
Part Number: SCE-VTC5T25B
Description: Vortex Cooler 500 to 2500 BTU w/Cold Air Dist.
Height: 8.50"
Width: 2.00"
Depth: 2.00"
Price Code: P1
List Price: $806.90
Catalog Page: 999
Est. Ship Weight: 4.00 lbs

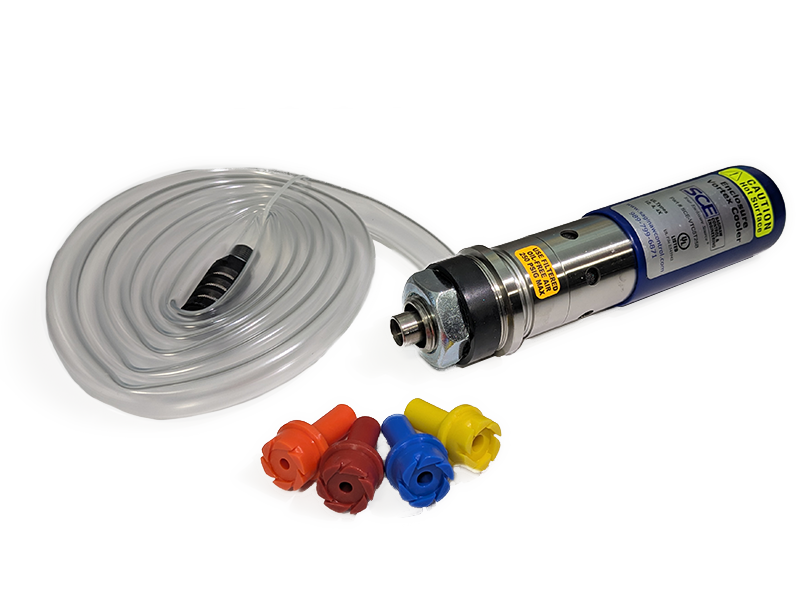

Construction
- 304 Stainless Steel Body
- Distribution Hose 7 Feet
- Muffler
- 8 SCFM Vortex Generator Installed - 500 BTU (White)
- Included 10 SCFM Vortex Generator - 600 BTU (Orange)
- Included 15 SCFM Vortex Generator - 1000 BTU (Red)
- Included 25 SCFM Vortex Generator - 1800 BTU (Blue)
- Included 35 SCFM Vortex Generator - 2500 BTU (Yellow)
Application
Vortex Cooler with 8 CFM (500BTU) vortex generator installed - 10, 15, 25 and 35 CFM vortex generator included to increase cooling capacity to you needs allowing cooling range of 500 BTU to 2500 BTU with a simple change of the generator. All stainless-steel body with distribution tube and muffler included.
Finish
Stainless Steel
Industry Standards - (IS5)
- NEMA Type 4, 4X, 12 and Type 13
- UL Listed Type 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
Notes
To obtain maximum performance from the Vortex Cooler, pressure (psig) and volume (scfm) of air must be maintained. Pressure drops in the compressed air lines should be held at a minimum. Quick connects can starve the Cooler by causing excessive line pressure drops. See Instructions for installation instructions for proper installation.

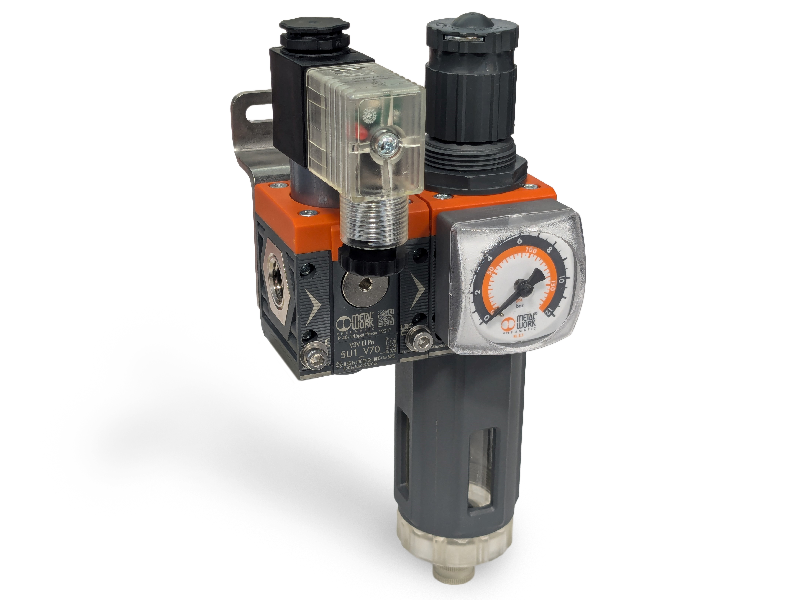

Optional Accessories
