SCE-NG5290B120V
Product Specifications:
Part Number: SCE-NG5290B120V

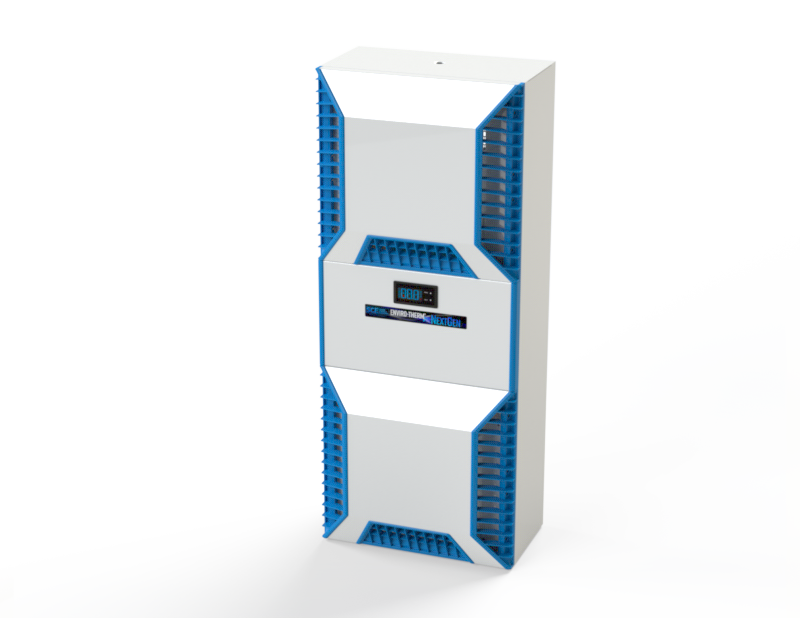

Description: Conditioner, NG Air - 5290 BTU/Hr. 120 Volt
Height: 37.40"
Width: 15.55"
Depth: 9.80"
Price Code: P1
List Price: $5,080.23
Catalog Page: 376
Est. Ship Weight: 96.00 lbs
Model Number: KG 8412
Construction
- Closed loop cooling system
- Hermetically sealed rotary compressor
- Internal components are corrosion resistant
- Built in ModBus communication RS485 serial
- Active condensate system
- Coils are designed as filterless units, fin spacing and hydrophobic Nano coating to help reduce chance of clogging when used filterless
- Washable, reusable aluminum mesh filters included
- Screw fastened filter cover
- R134a refrigerant - chlorine-free and harmless to the environment
- Easy handling removable lifting strap
- Mounting flange hangers for easy installation, included
- Digital touchpad programmable controller, viewable from outside the enclosure
- Controller preset 95°F to cool adjustable 68°F to 122°F
- Temperature differential hysteresis 5.4°F
- High temp alarm preset 131°F
- High performance ball bearing fans
- Door activated switch wiring provisions provided for easy installation
Application
NextGen Enviro-Therm Air Conditioners are designed with an internal closed loop system to provide protection from dust, oil and water. For use in most industrial area or application where low ambient temperature is not a concern, both indoor and outdoor. Rugged, energy efficient and reliable cooling system. Installation may be Surface or Recessed Mounted
Finish
Powder coated steel Cover RAL 7035 River Texture over Aluzinc coated steel
Industry Standards - (IS19)
- NEMA Type 3R, 4 & 12
- UL Recognized Type 3R, 4 & 12
- IEC 60529
- IP 56
Notes
For use in applications were low ambient is not a concern. Extended ambient temperature range +40°F to 140°F (Unit does not have low ambient compressor heater)
