Saginaw Control and Engineering
95 Midland Road Saginaw, MI 48638-5770
(800) 234-6871 - Fax: (989) 799-4524
SCE@SaginawControl.com

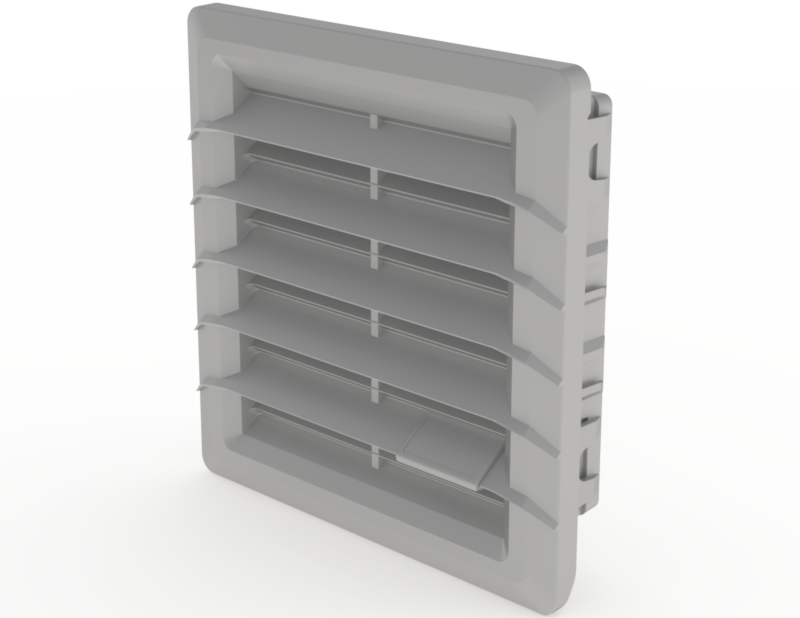

SCE-FEG44LG
Product Specifications:
Part Number: SCE-FEG44LG
Description: Filter Exaust Grille. Type 3R, 12 RAL 7035
Height: 5.80"
Width: 5.80"
Depth: 1.75"
Price Code: P1
List Price: $58.71
Catalog Page: 999
Est. Ship Weight: 0.75 lbs
Application
Easy to install snap fit design with hinged cover for use in enclosures that require cooling but have limited space in NEMA 1, 3R and 12 applications. Grille UV and water resistant, self-extinguishing PVC material, housing is made of ABS material . Fans are available in 115 or 230 volt AC, 60/50 Hertz (HZ) single phase or 24 volt DC. 500 CFM Available in 460 volt AC - Filter Class G3 EN 779 - Filter Fire Class F1 DIN 53438 Self-extinguishing.
Industry Standards - (IS24)
- UL Component Recognized
Notes
Type 12 - IEC 60529 IP 54 cULus Listed E498756 cULus File Component Recognized E358386 Motor w/ Thermal Protection
Optional Accessories
Similar Part Numbers
