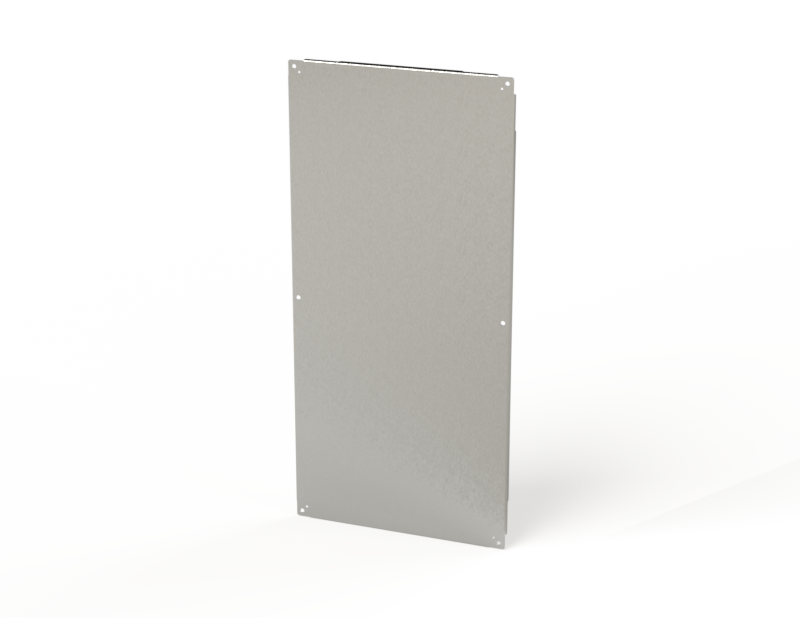

SCE-60P30SS
Product Specifications:
Part Number: SCE-60P30SS
Description: Subpanel, S.S. Bent
Height: 57.00"
Width: 27.00"
Depth: 0.85"
Price Code: P3
List Price: $443.78
Catalog Page: 442
Est. Ship Weight: 50.00 lbs
Configuration: C
Application
Designed to mount in the back of an enclosure. Size determines steel thickness.
Finish
Part numbers ending **SS6 will always be 316 stainless steel & thickness will depend on subpanel size.
Configuration category will change mounting styles and steel type.
Configuration A - (Example: SCE-12P10SS) Sub-panels are made of 316/316L stainless steel with #4 brushed finish.
Configuration B - (Example: SCE-20P16SS Sub-panels are made of 304 stainless steel with #4 brushed finish.
Configuration C - (Example: SCE-20P16SS Sub-panels are made of 304 stainless steel with #4 brushed finish
Industry Standards - (IS17)
- NEMA Not Applicable
- UL Not Applicable
- CSA N/A
