SCE-60K3612SSST
Product Specifications:
Part Number: SCE-60K3612SSST

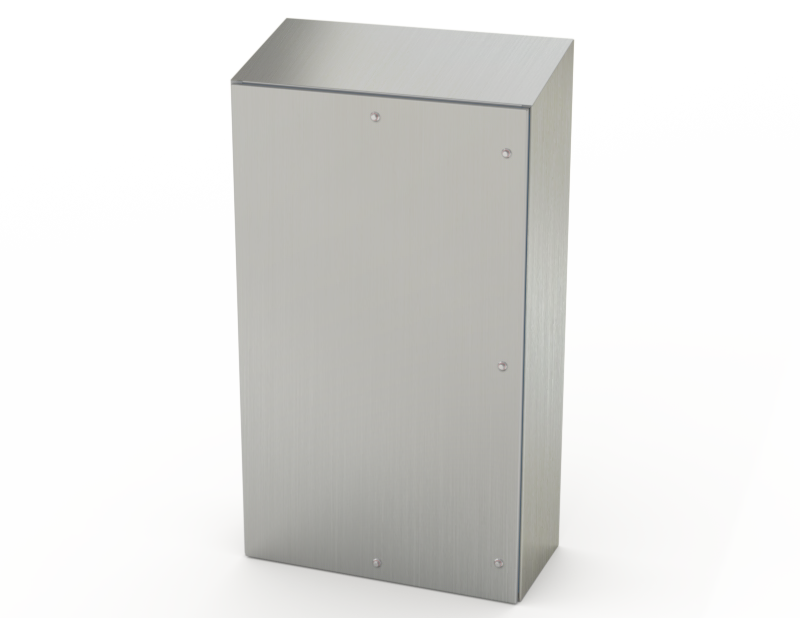

Description: S.S. Sanitary Sloping Top Enclosure
Height: 60.00"
Width: 36.00"
Depth: 12.00"
Price Code: S8
List Price: $7,091.80
Catalog Page: 5000
Est. Ship Weight: 216.50 lbs
Construction
- 0.075 In. stainless steel Type 304
- Seams continuously welded and ground smooth
- 15 degree sloped top
- Internal swing out hinges
- Doors open 110 degree
- Stainless sanitary quarter turn latches with FDA - Grade silicone gasket
- Pour in place oil & water resistant inner gasket
- FDA - Grade silicone outer gasket
- Provision for mounting optional panels
- Mounting holes in back of enclosure for optional mounting stand-off or mounting options
- Ground stud on door & body
- DIN 40050-9, IP69K
- ANSI 3A 00-01 Sanitary Standard for General Requirements
- NSF 169 Special Purpose Food Equipment and Devices
Application
Designed to withstand high pressure and high temperature washdown procedures with direct and indirect food contact applications within the Food & Beverage industry. Enclosure is designed with internal swing-out hinges to reduce bacteria catch points and helps to maximize back panel space. Includes dual gasket design that ensures it performs in extreme applications. Inner Pour in place oil & water-resistant gasket with an easily replaceable outer gasket - FDA-grade silicone gasket that helps resist bacteria growth and chemical absorption.
For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
# 4 Brushed finish 25-35 RA suitable for medical and food industry.
Industry Standards - (IS25)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 69
