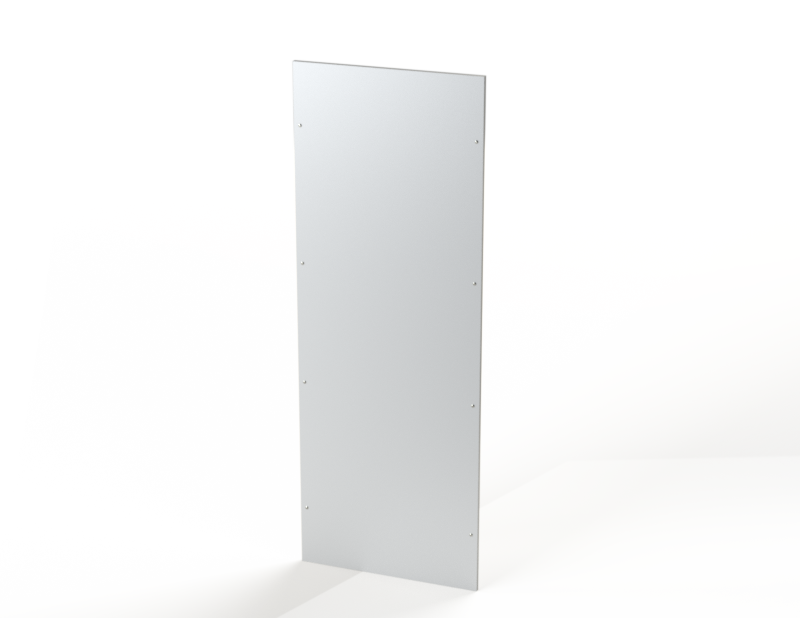

RPE228

RPE228

Product Specifications:


Part Number: RPE228

Description: Rear exterior panel 2200 X 800mm (HxW)

Height: 86.61"

Width: 32.28"

Depth: 1.57"

Price Code: Q1

List Price: $296.58

Catalog Page: 999

Est. Ship Weight: 55.56 lbs

UL File No: E503249

UL CategoryControl: NITW2 NITW8

UL Model Number: OK Series

Download CAD PackageAdd to Bill of MaterialPrint Page

Construction

  • Carbon Steel
  • M6 ground stud top and bottom
  • Pour in place oil & water resistant gasket
  • 8 Exterior Panel Mounting Clips CLK013-KIT2F

Application

Rear Exterior Panel for OK Series

Finish

RAL 7035 light gray, textured powder coat finish

Industry Standards - (IS24)

  • UL Component Recognized

Similar Part Numbers

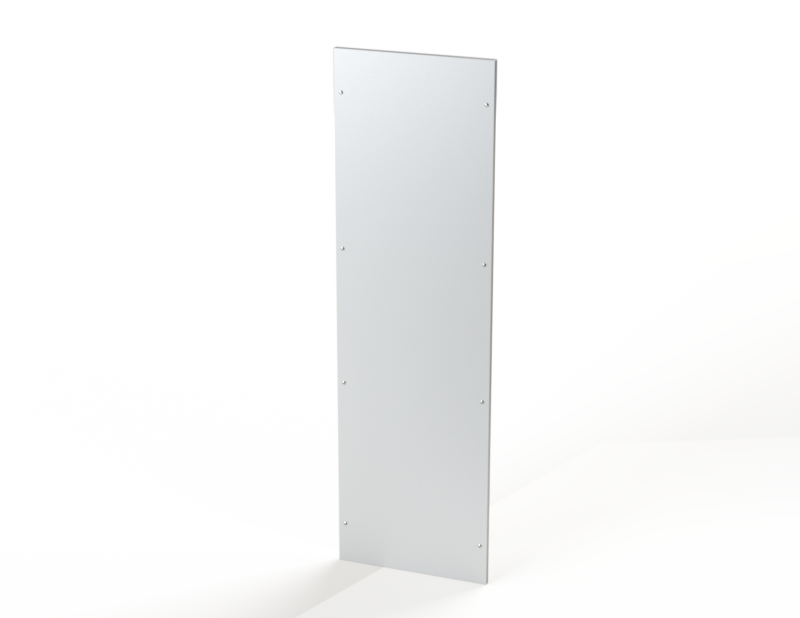

RPE206

RPE206
Rear Exterior Panel 2000 x 600mm

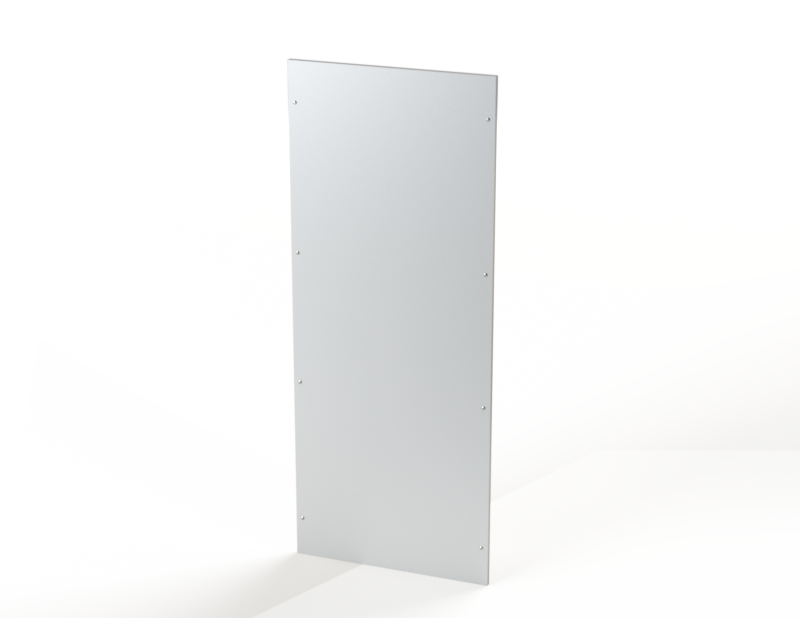

RPE208

RPE208
Rear Exterior Panel 2000 x 800mm

RPE20A

RPE20A
Rear Exterior Panel 2000 x 1000mm

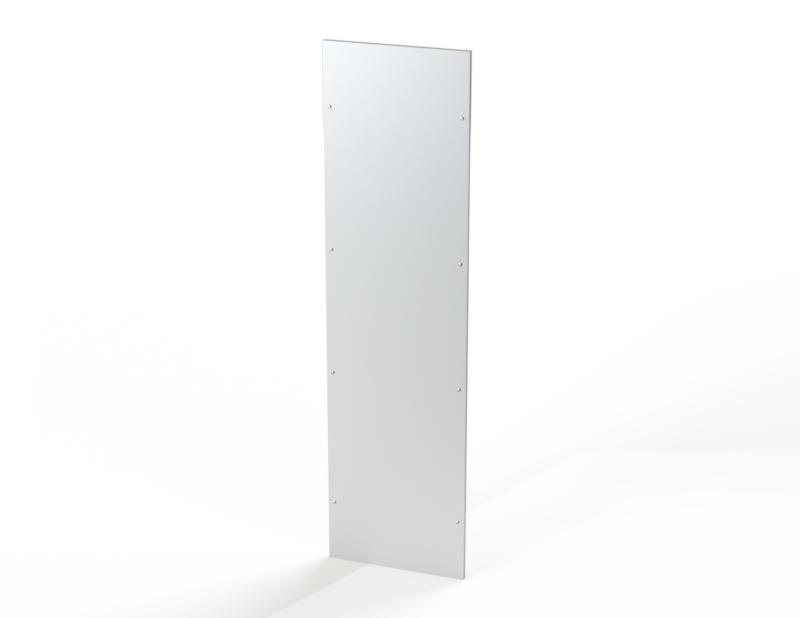

RPE226
