RPE188

RPE188

Product Specifications:


Part Number: RPE188

Description: Rear Exterior Panel 1800 x 800mm

Height: 71.00"

Width: 32.50"

Depth: 2.00"

Price Code: Q1

List Price: $211.36

Catalog Page: 999

Est. Ship Weight: 45.00 lbs

UL File No: E503249

UL CategoryControl: NITW2 NITW8

UL Model Number: OK Series

Download CAD PackageAdd to Bill of MaterialPrint Page

Construction

  • Carbon Steel
  • M6 ground stud top and bottom
  • Pour in place oil & water resistant gasket
  • 8 Exterior Panel Mounting Clips CLK013-KIT2F

Application

Rear Exterior Panel for OK Series

Finish

RAL 7035 light gray, textured powder coat finish

Industry Standards - (IS24)

  • UL Component Recognized

Similar Part Numbers

RPE186

RPE186
Rear Exterior Panel 1800 x 600mm

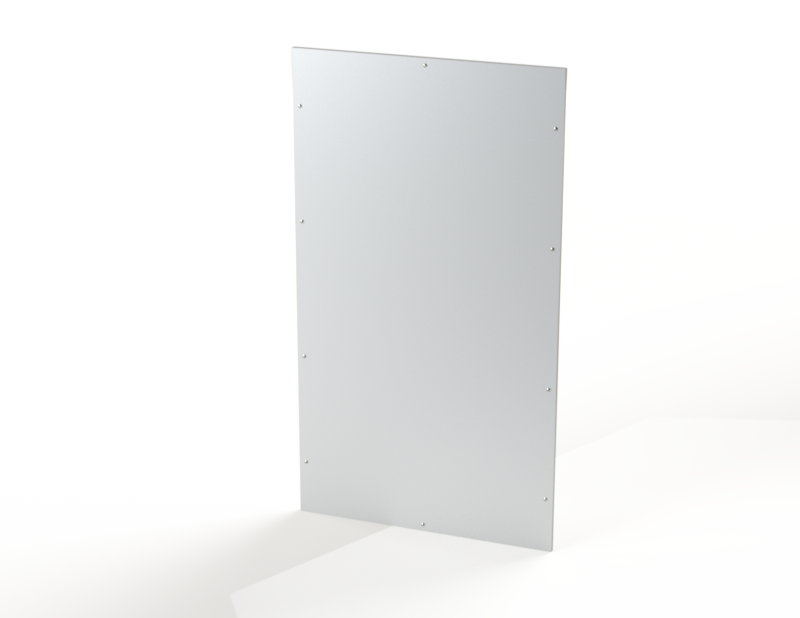

RPE18A
