RPE186

RPE186

Product Specifications:

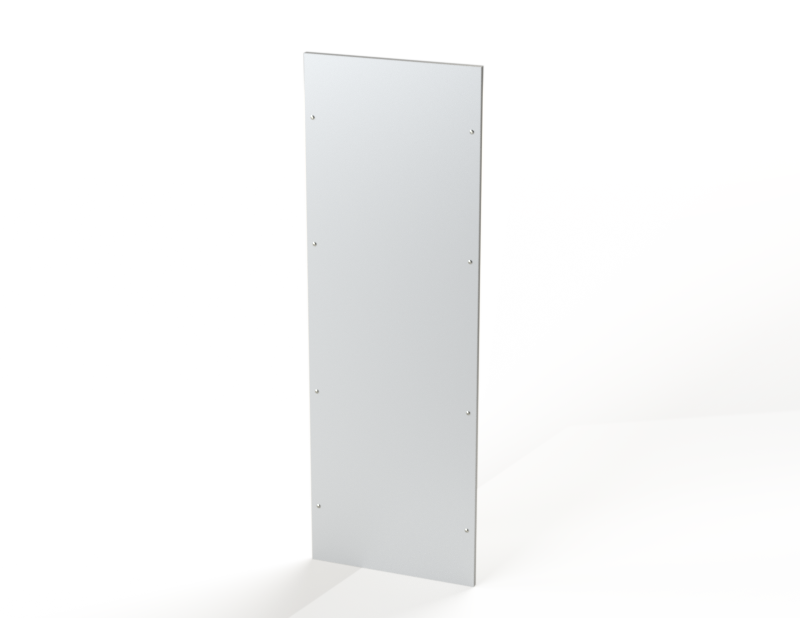

Part Number: RPE186

Description: Rear Exterior Panel 1800 x 600mm

Height: 70.24"

Width: 23.35"

Depth: 0.85"

Price Code: Q1

List Price: $170.28

Catalog Page: 999

Est. Ship Weight: 33.00 lbs

UL File No: E503249

UL CategoryControl: NITW2 NITW8

UL Model Number: OK Series

UL: Recognized type 12

Download CAD PackageAdd to Bill of MaterialPrint Page

Construction

  • Carbon Steel
  • M6 ground stud top and bottom
  • Pour in place oil & water resistant gasket
  • 8 Exterior Panel Mounting Clips CLK013-KIT2F

Application

Rear Exterior Panel for OK Series

Finish

RAL 7035 light gray, textured powder coat finish

Industry Standards - (IS24)

  • UL Component Recognized

Similar Part Numbers

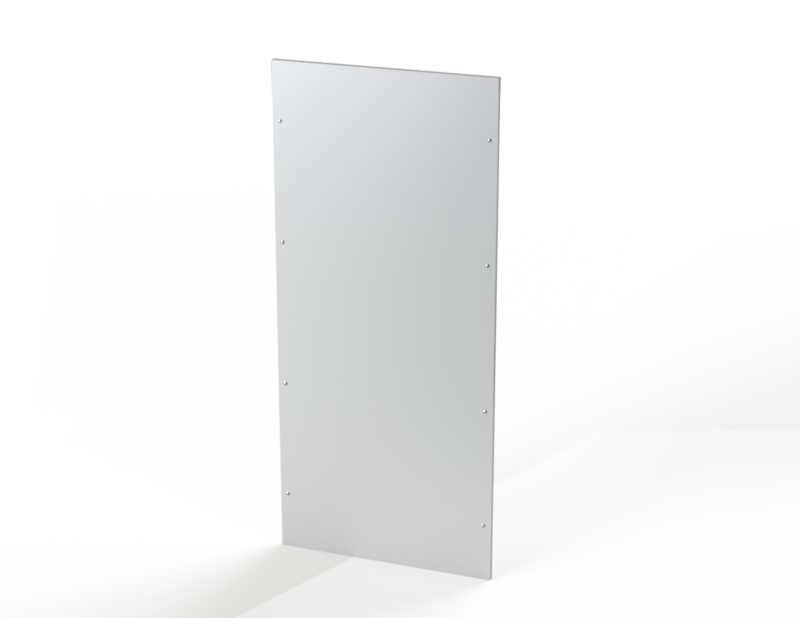

RPE188

RPE188
Rear Exterior Panel 1800 x 800mm

RPE206

RPE206
Rear Exterior Panel 2000 x 600mm

RPE208

RPE208
Rear Exterior Panel 2000 x 800mm

Installation Information
