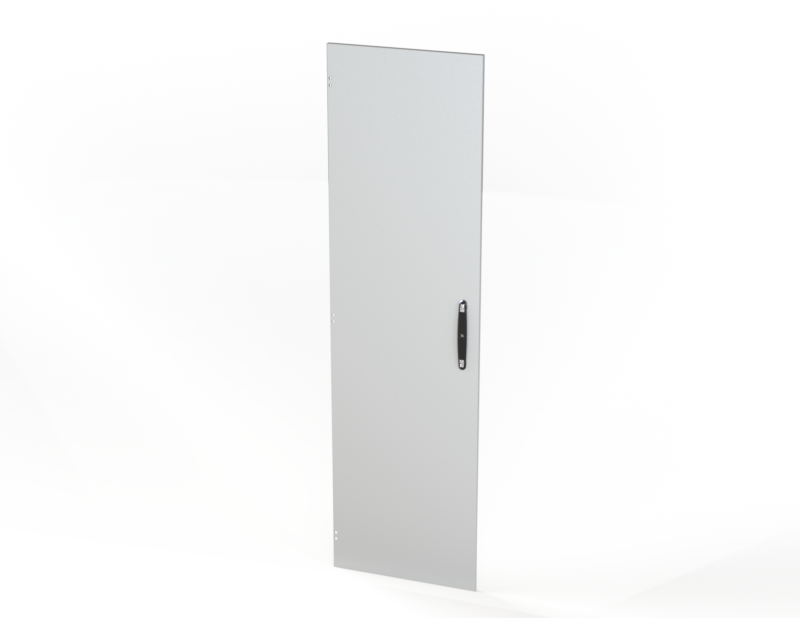

FPK206

FPK206

Product Specifications:


Part Number: FPK206

Description: Side Door 2000 X 600mm

Height: 78.11"

Width: 22.01"

Depth: 0.61"

Price Code: Q1

List Price: $507.25

Catalog Page: 999

Est. Ship Weight: 52.91 lbs

UL CategoryControl: NITW2 NITW8

UL File No: E503249

UL Model Number: OK Series

UL: Recognized type 12

Download CAD PackageAdd to Bill of MaterialPrint Page

Construction

  • Carbon Steel
  • Galvanized Inner Stiffener Frame
  • Door opens 120 degrees
  • Door swing right. Interchangeable to left swing with optional Door Hinge kit.
  • Pour in place oil & water resistant gasket
  • 3-point latching mechanism
  • 3mm double bit key entry
  • M6 ground stud top and bottom

Application

Side Door for OK Series Enclosure

Finish

RAL 7035 light gray, textured powder coat finish

Industry Standards - (IS17)

  • NEMA Not Applicable
  • UL Not Applicable
  • CSA N/A

Optional Accessories


CAP180RL-SX

CAP180RL-SX
Kit of side Door Hinge - FPK - LEFT (4pcs)

Similar Part Numbers

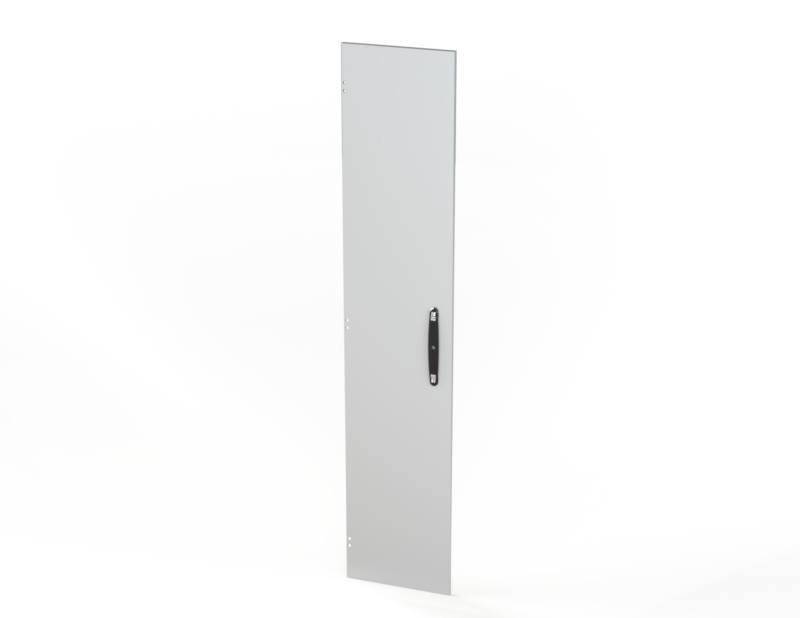

FPK184

FPK184
Side Door 1800 X 400mm

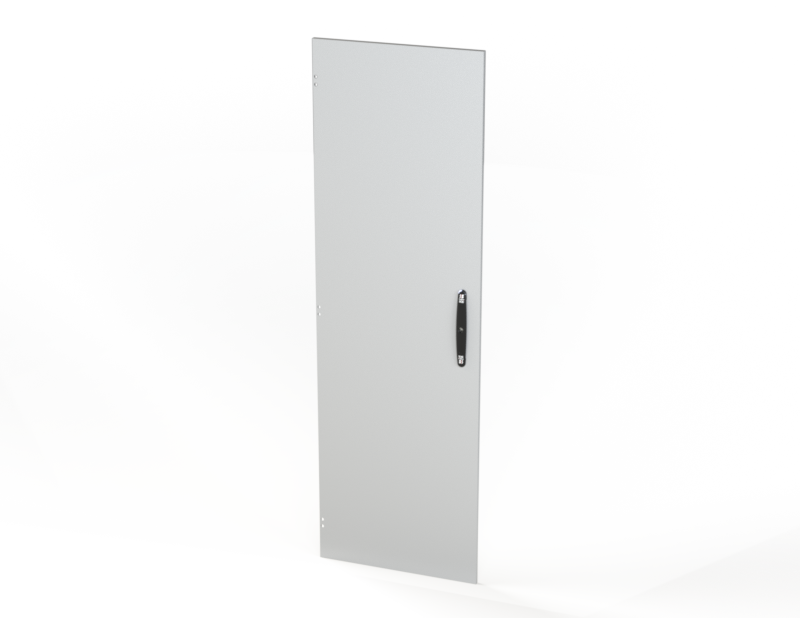

FPK186

FPK186
Side Door 1800 X 600mm

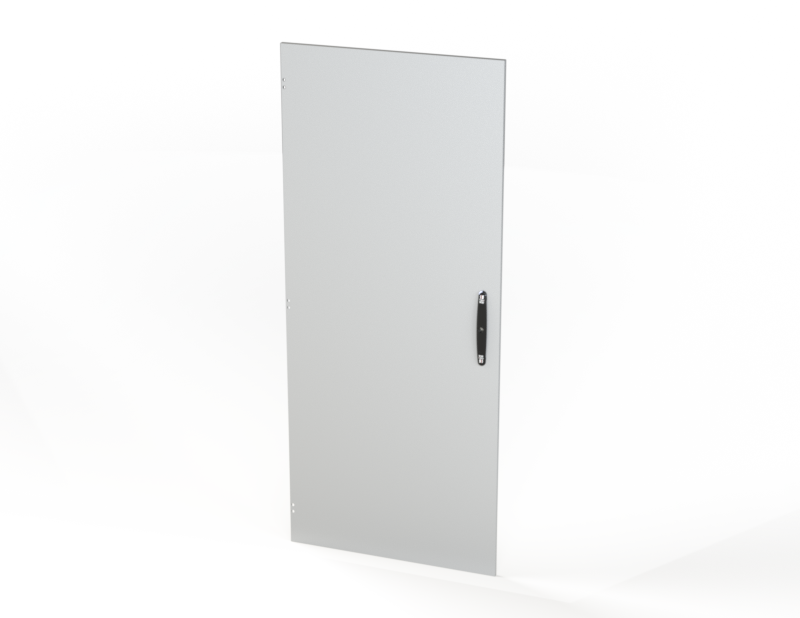

FPK188

FPK188
Side Door 1800 X 800mm

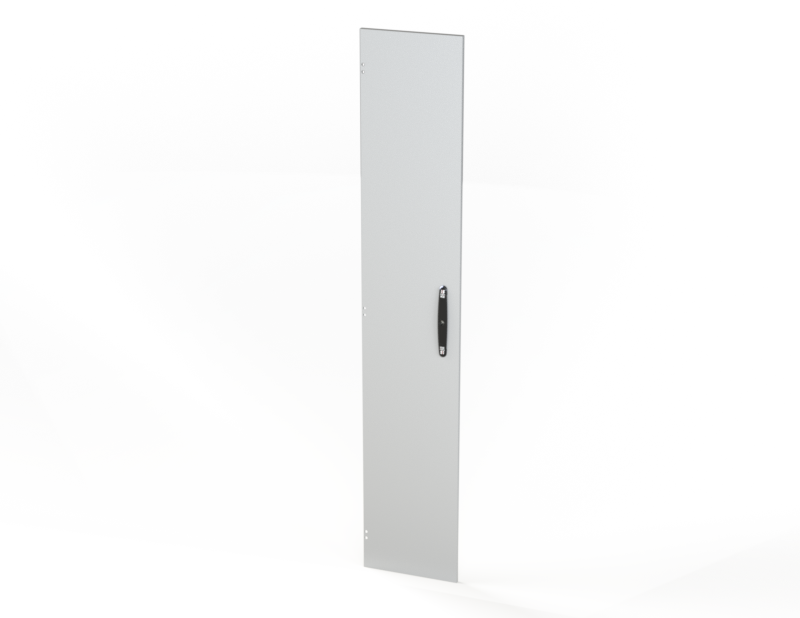

FPK204

FPK204
Side Door 2000 X 400mm

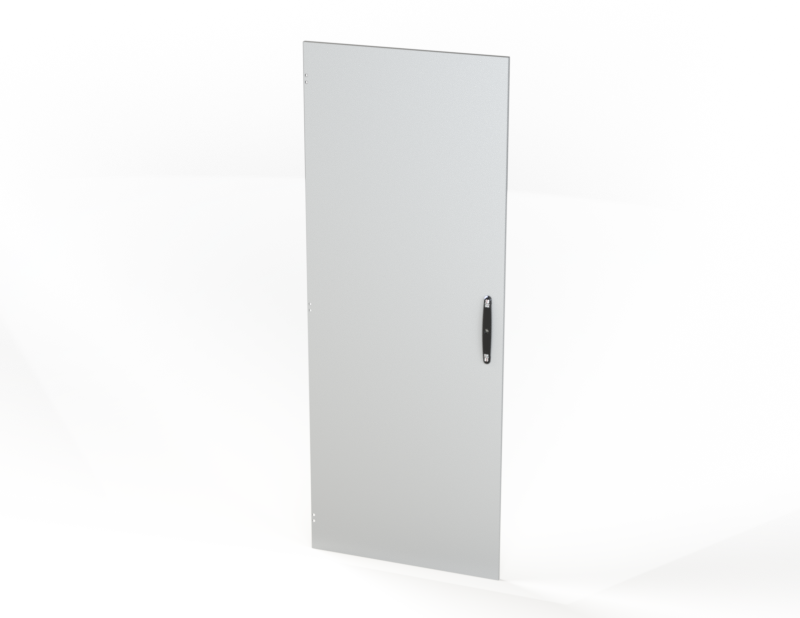

FPK208

FPK208
Side Door 2000 X 800mm

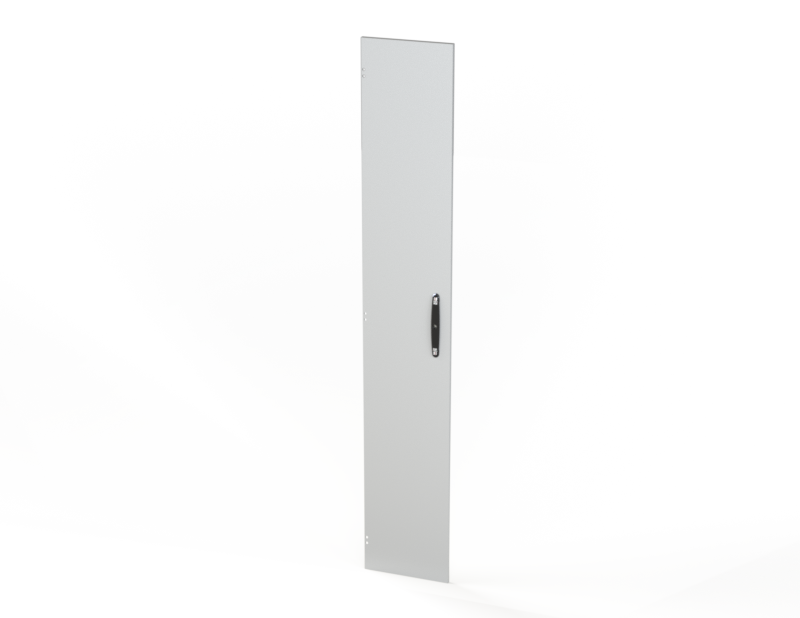

FPK224

FPK224
Side Door 2200 X 400mm

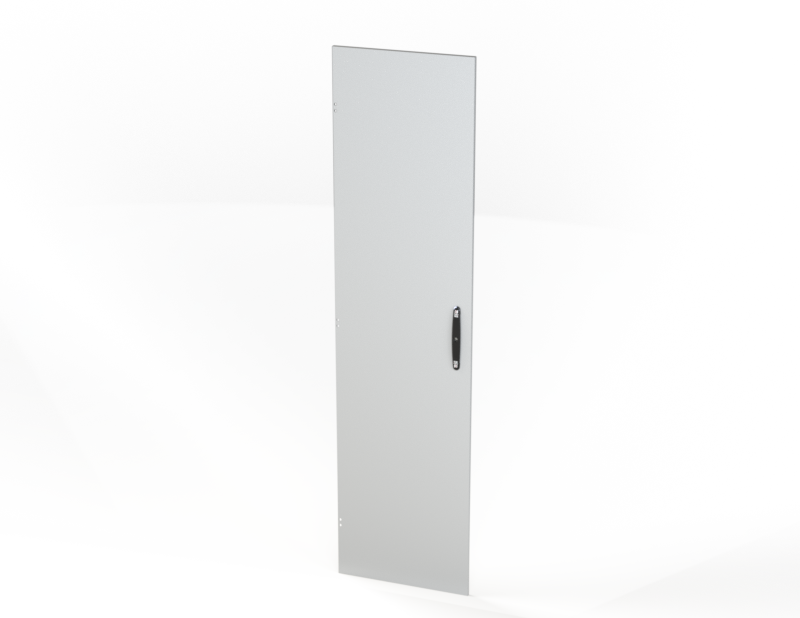

FPK226

FPK226
Side Door 2200 X 600mm

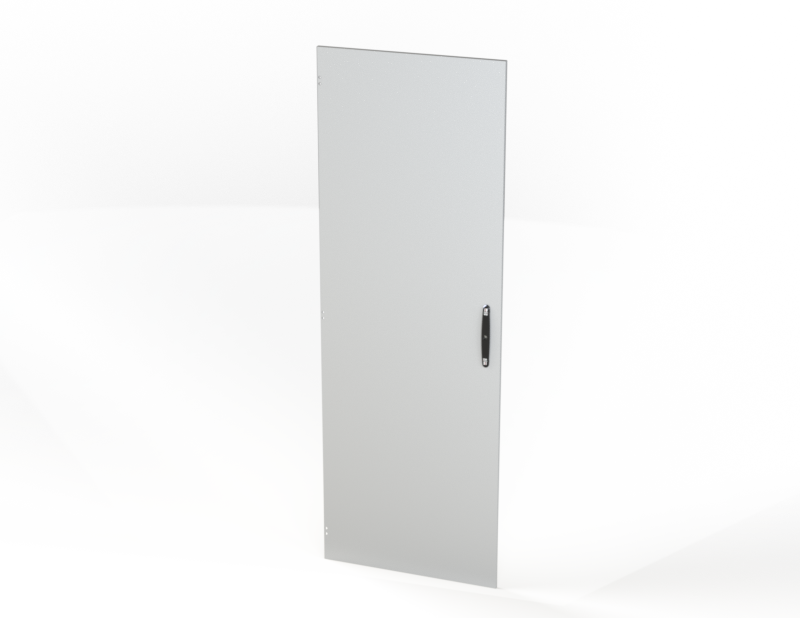

FPK228
