FPK184
Product Specifications:
Part Number: FPK184

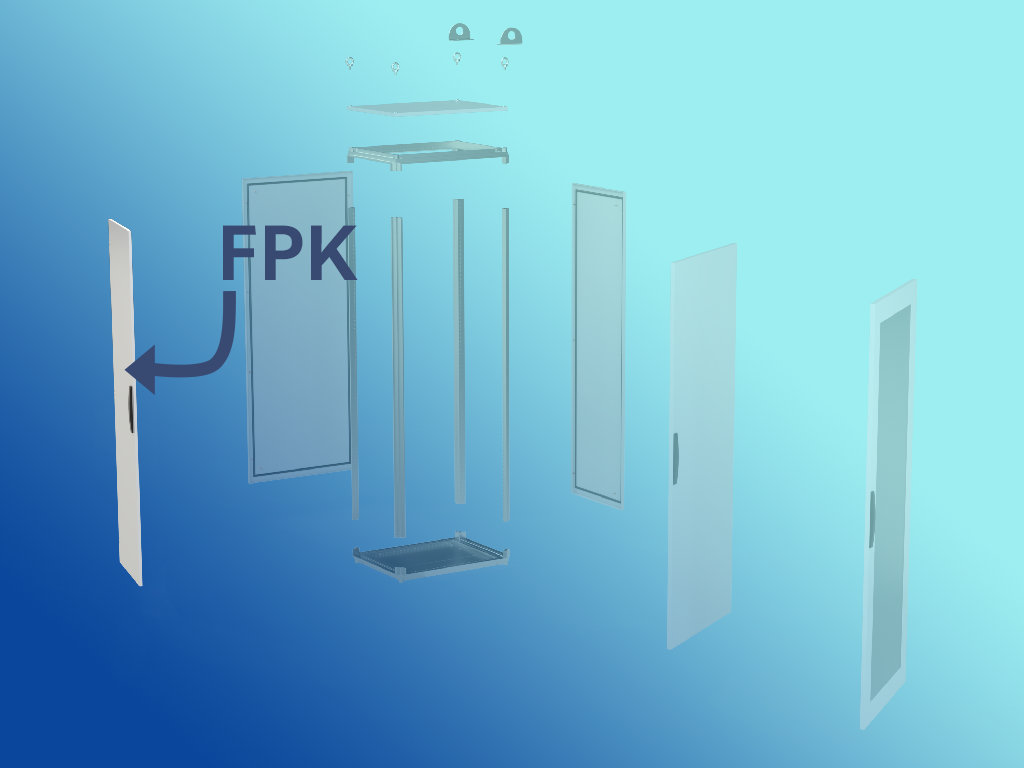

Description: Side Door 1800 X 400mm
Height: 70.24"
Width: 14.13"
Depth: 0.61"
Price Code: Q1
List Price: $449.63
Catalog Page: 999
Est. Ship Weight: 30.50 lbs
UL CategoryControl: NITW2 NITW8
UL File No: E503249
UL Model Number: OK Series
UL: Recognized type 12
Construction
- Carbon Steel
- Galvanized Inner Stiffener Frame
- Door opens 120 degrees
- Door swing right. Interchangeable to left swing with optional Door Hinge kit.
- Pour in place oil & water resistant gasket
- 3-point latching mechanism
- 3mm double bit key entry
- M6 ground stud top and bottom
Application
Side Door for OK Series Enclosure
Finish
RAL 7035 light gray, textured powder coat finish
Industry Standards - (IS17)
- NEMA Not Applicable
- UL Not Applicable
- CSA N/A
Similar Part Numbers
