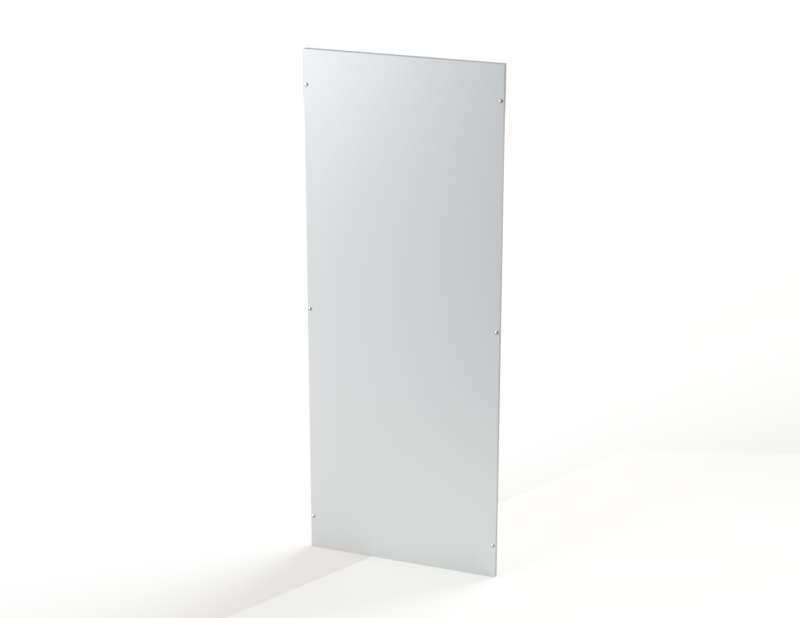

DLK208

DLK208

Product Specifications:


Part Number: DLK208

Description: Side Exterior Panel 2000 x 800mm (Pkg. 2.)

Height: 78.07"

Width: 29.88"

Depth: 0.85"

Price Code: Q1

List Price: $316.66

Catalog Page: 999

Est. Ship Weight: 91.00 lbs

UL File No: E503249

UL CategoryControl: NITW2 NITW8

UL Model Number: OK Series

UL: Recognized type 12

Download CAD PackageAdd to Bill of MaterialPrint Page

Construction

  • Carbon Steel
  • M6 ground stud top and bottom
  • Pour in place oil & water resistant gasket
  • 12 Exterior Panel Mounting Clips CLK013-KIT2F
  • 6 fixing points per side exterior panel

Application

Side Exterior panels for OK Series

Finish

RAL 7035 light gray, textured powder coat finish

Industry Standards - (IS24)

  • UL Component Recognized

Similar Part Numbers

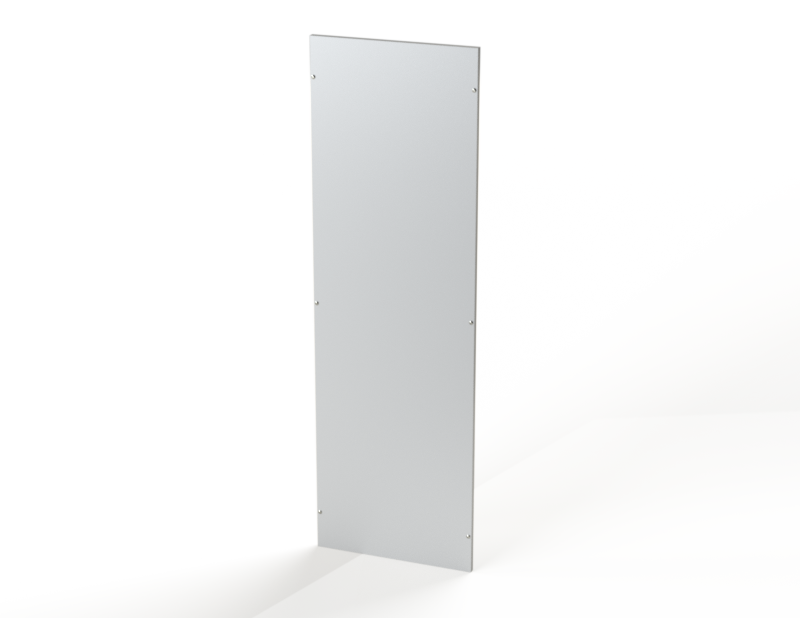

DLK186

DLK186
Side Exterior Panel 1800 x 600mm (Pkg. 2)

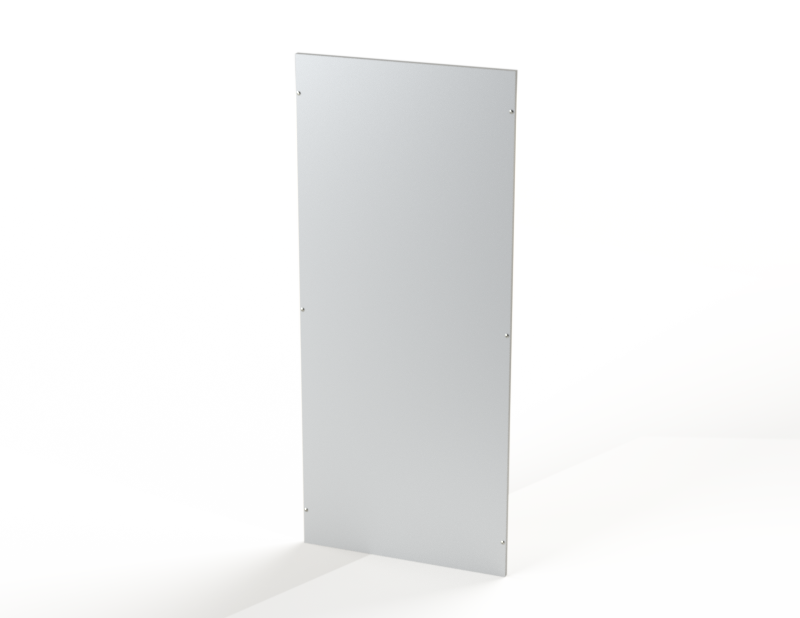

DLK188

DLK188
Side Exterior Panel 1800 x 800mm (Pkg. 2)

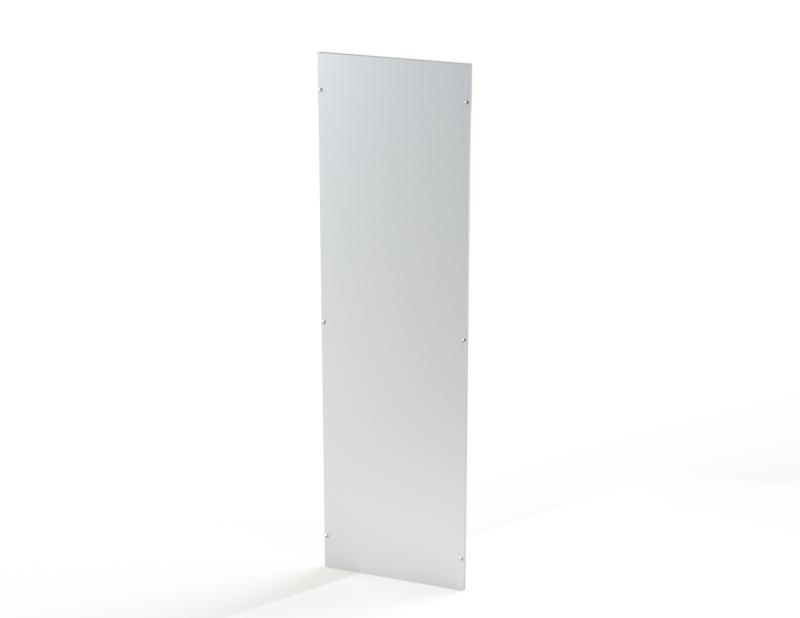

DLK206

DLK206
Side Exterior Panel 2000 x 600mm (Pkg. 2)

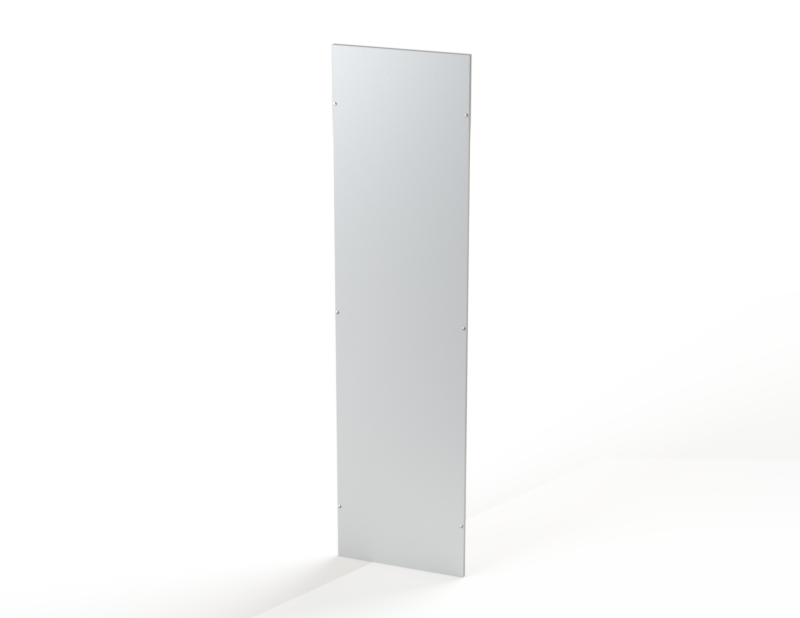

DLK226

DLK226
Side exterior panel 2200 x 600mm (HxD) (Pkg. 2.)

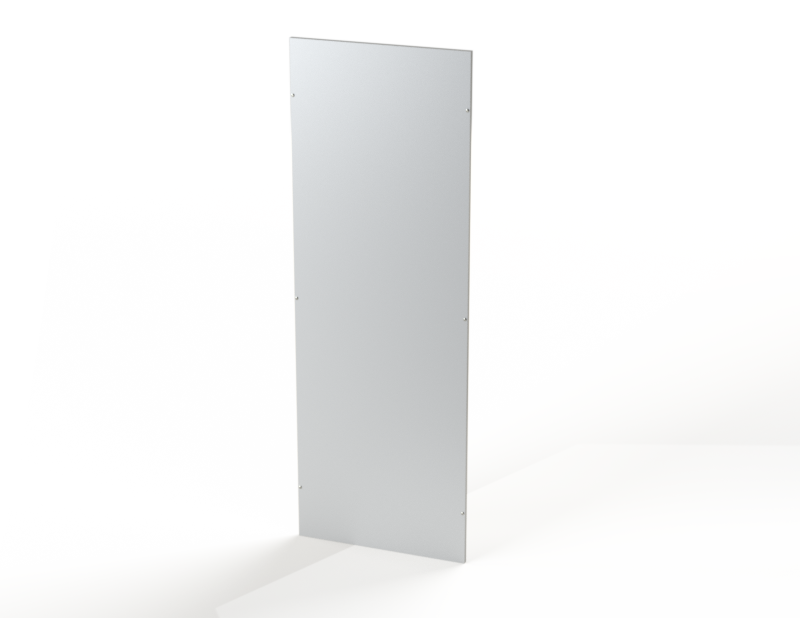

DLK228
