Product Specifications:

Part Number: SCE-48H3608SSLP

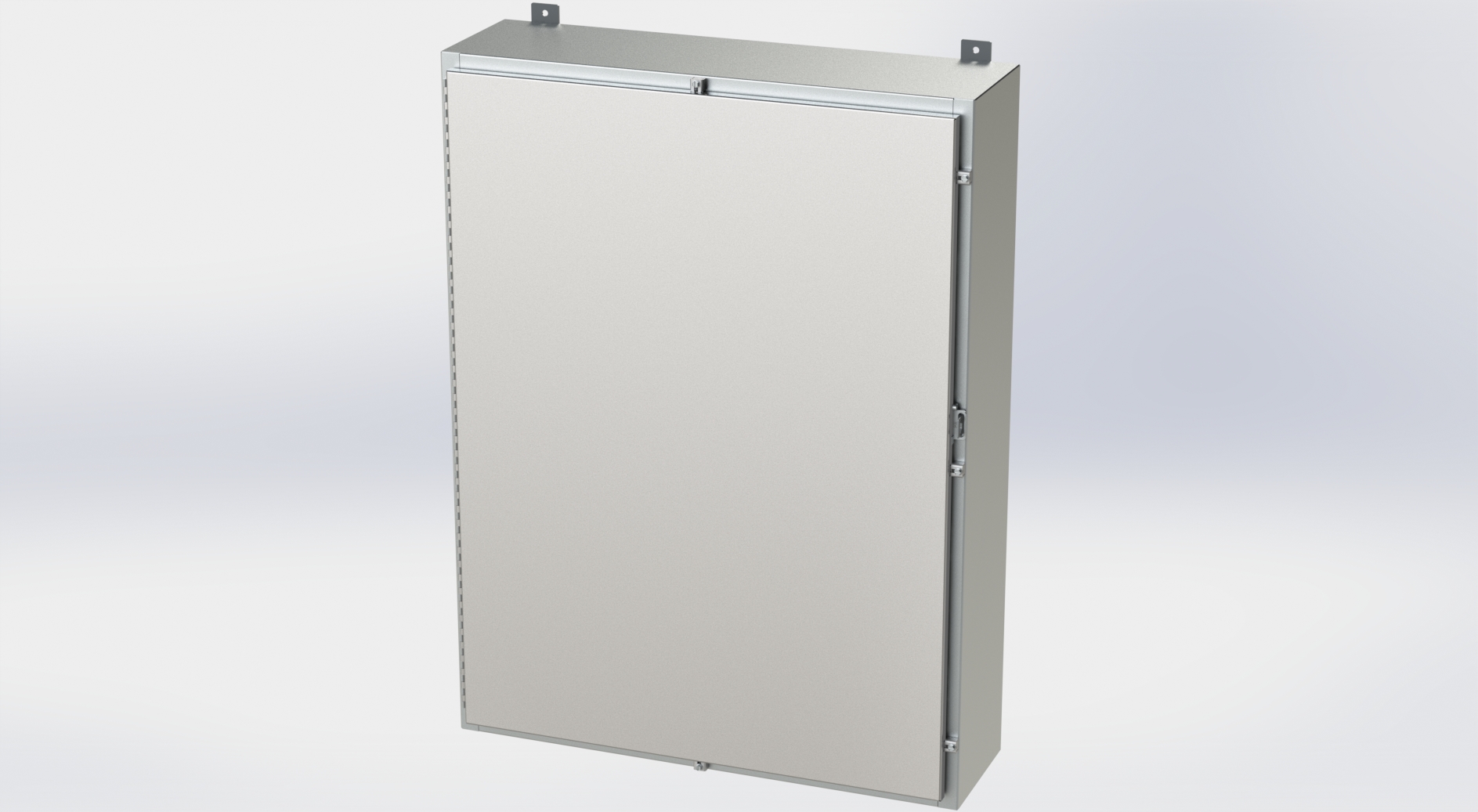

Description: Nema 4X LP Enclosure

Height: 48.00"

Width: 36.00"

Depth: 8.00"

Price Code: S3

List Price: $2,564.83

Catalog Page: 284

Est. Ship Weight: 126.00 lbs

Download CAD Package Add to Bill of Material Print Page

Construction

0.075 In. stainless steel Type 304.
Continuously welded seams ground smooth.
Flange trough collar around all sides of door opening.
Oil-resistant door gasket.
Collar studs provided for mounting optional subpanels.
Hasp and staple for padlocking.
Stainless steel continuous hinge.
Removable print pocket furnished if height and width of enclosure is greater than 12 Inches.
Ground stud on door.
Stainless steel clamps on three sides door when greater than 30 inch wide.
Mounting provision top and bottom of back.

Application

Designed to house electrical and electronic controls, instruments and components in areas which may be regularly hosed down or are very wet conditions. Provides protection from dust, dirt, oil and water. For outdoor applicationS a drip shield is recommended. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)
