Part Number: SCE-20H1608SSLP

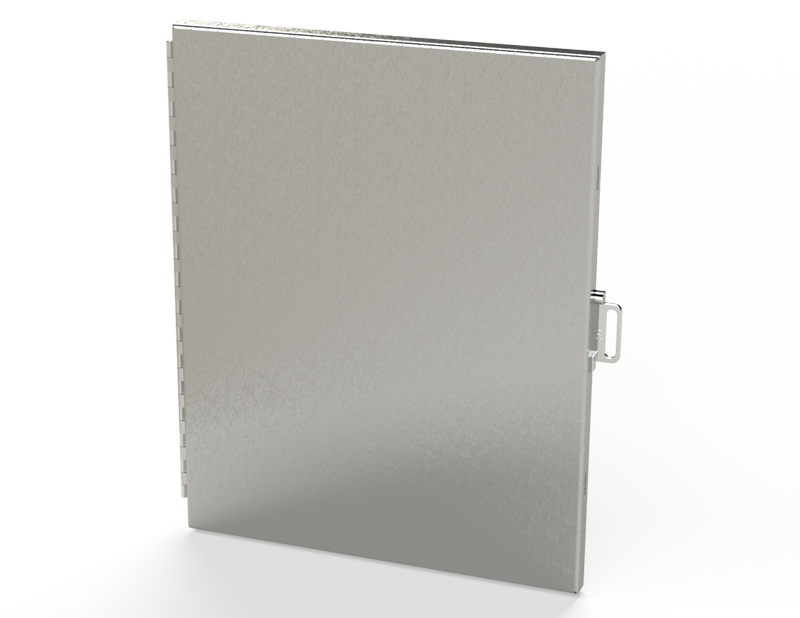

Description: Nema 4X LP Enclosure
Price Code: S3
List Price: $819.84
Catalog Page: 224
Est. Ship Weight: 33.00 lbs
- 0.075 In. stainless steel Type 304.
- Continuously welded seams ground smooth.
- Flange trough collar around all sides of door opening.
- Oil-resistant door gasket.
- Collar studs provided for mounting optional subpanels.
- Hasp and staple for padlocking.
- Stainless steel continuous hinge.
- Removable print pocket furnished if height and width of enclosure is greater than 12 Inches.
- Ground stud on door.
- Stainless steel clamps on three sides door when greater than 30 inch wide.
- Welded mounting provision top and bottom of back.
Industry Standards - (IS6)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
