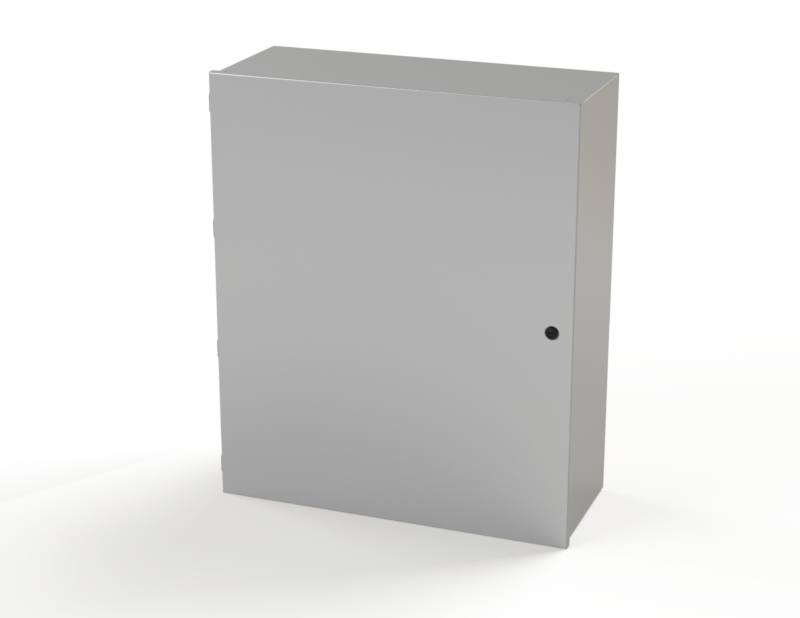

SCE-36N3012LP
Product Specifications:
Part Number: SCE-36N3012LP
Description: Nema-1 Enclosure
Height: 36.00"
Width: 30.00"
Depth: 12.00"
Price Code: N1
List Price: $310.04
Catalog Page: 120
Est. Ship Weight: 83.00 lbs
Construction
- 0.048 In., 0.063 In. & 0.075 In. carbon steel depending on enclosure size.
- Spot weld construction.
- 1/4-20 Standoffs provided for mounting optional panels.
- Doors open 180 degrees.
- Black quarter turn latches.
- Latches are opened or closed with a screwdriver.
- Ground stud on door.
- Mounting holes in back of enclosure.
- Subpanel mounting hardware.
- Butt Hinge - Black
Application
Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection.
Finish
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Industry Standards - (IS8)
- NEMA Type 1
- UL Listed Type 1
- CSA Type 1
- IEC 60529
- IP 30
Notes
Patent Pending - Quarter Turn Door latch
