Part Number: SCE-36N3006LP

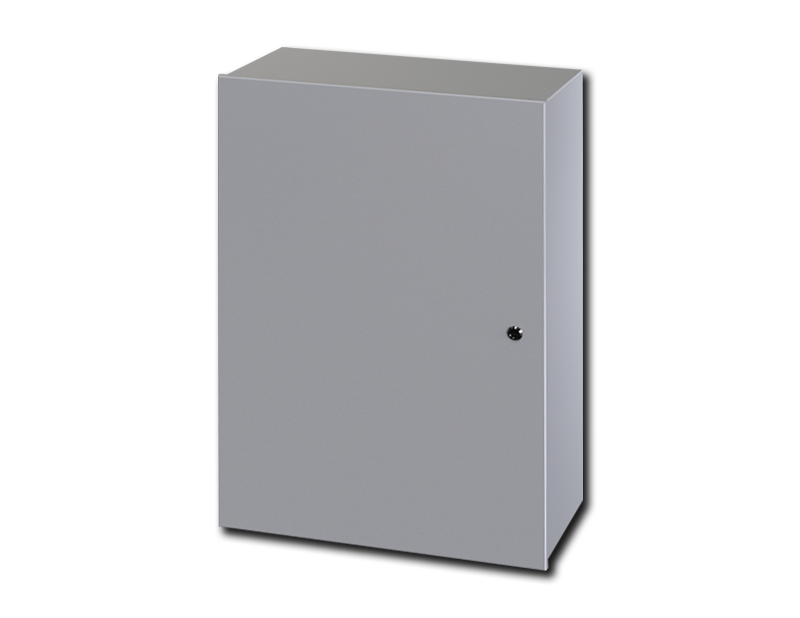

Description: Enclosure, Nema-1
Price Code: N1
List Price: $211.16
Catalog Page: 96
Est. Ship Weight: 68.00 lbs
- 0.048 In., 0.063 In. & 0.075 In. carbon steel depending on enclosure size.
- Spot weld construction.
- Standoffs provided for mounting optional panels.
- Butt hinge.
- Doors open 180 degrees.
- Black quarter turn latches.
- Latches are opened or closed with a screwdriver.
- Ground stud on door.
- Mounting holes in back of enclosure.
- Subpanel mounting hardware.
Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection.
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Industry Standards - (IS8)
- NEMA Type 1
- UL Listed Type 1
- CSA Type 1
- IEC 60529
- IP 30
