Saginaw Control and Engineering
95 Midland Road Saginaw, MI 48638-5770
(800) 234-6871 - Fax: (989) 799-4524
SCE@SaginawControl.com
SCE-N12TM5CF460V3
Product Specifications:
Part Number: SCE-N12TM5CF460V3

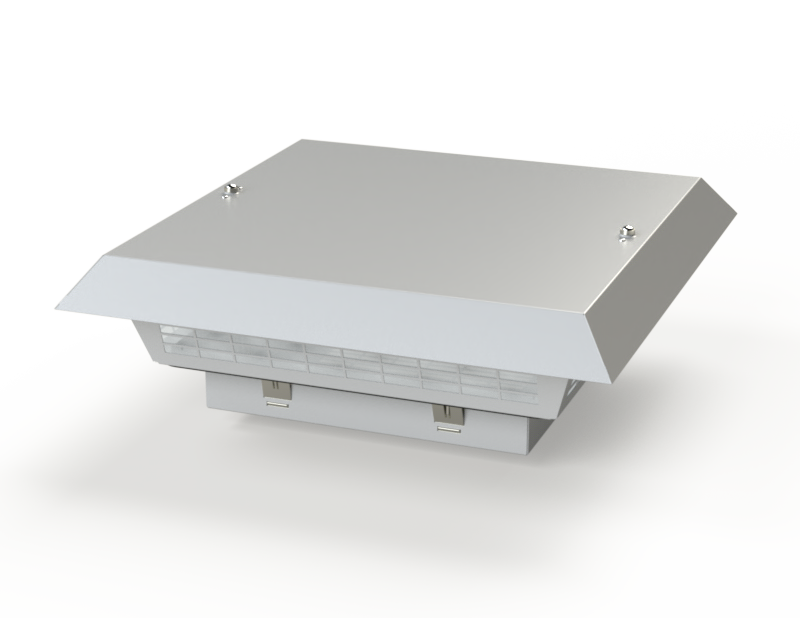

Description: Top Mount Fan
Height: 5.60"
Width: 18.00"
Depth: 18.00"
Price Code: P1
List Price: $1,136.87
Catalog Page: 399
Est. Ship Weight: 15.00 lbs
Air volume flow: 570 cfm
Static pressure: 520 Pa
Voltage / Frequency: 400/460 V - 50/60 Hz 3~
Power consumption: 150 W / 230 W
Rated current: 0.38 A / 0.5 A
Model: FL 6095A9000
Construction
- Top mounted
- Filter class G3
- See more detail within installation manual
Application
Easy to install top mounted design for use in NEMA 12 enclosures
Finish
Powder coat RAL 7035
Industry Standards - (IS24)
- UL Component Recognized
Notes
Type 12
cULus File Component Recognized E358386
cULus Listed E498756
