DTE186
Product Specifications:
Part Number: DTE186

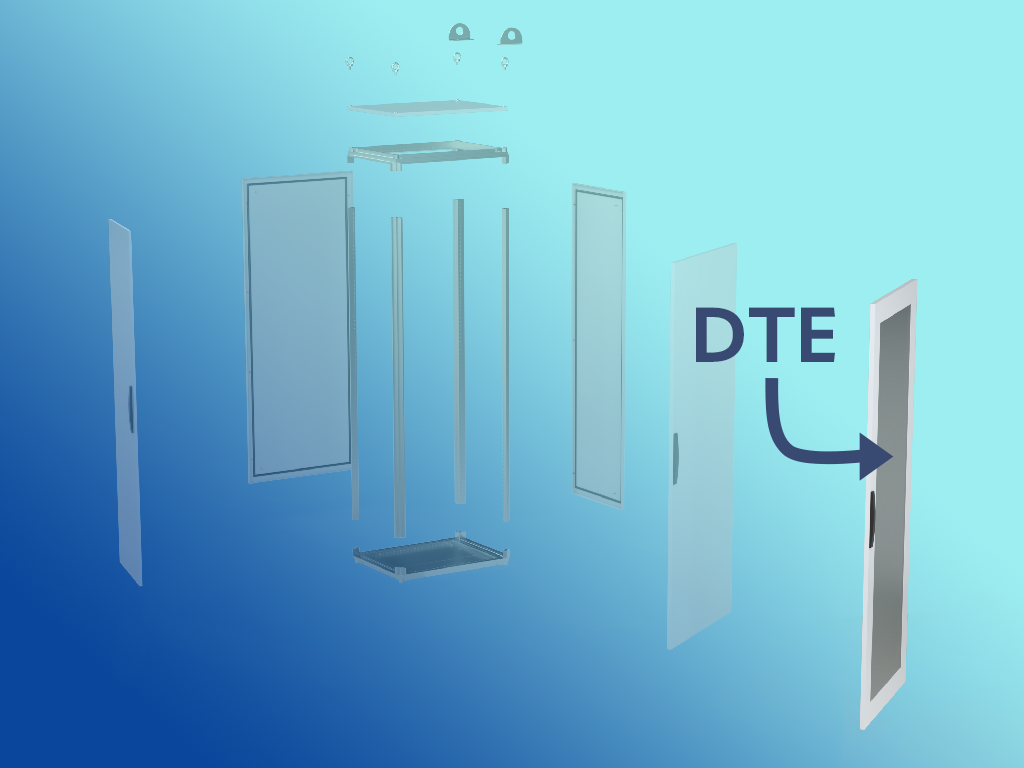

Description: Door 1800 x 600mm w/ acrylic window.
Height: 70.20"
Width: 23.35"
Depth: 0.87"
Price Code: Q1
List Price: $762.06
Catalog Page: 999
Est. Ship Weight: 39.82 lbs
Acrilic Window: 1580 X 390mm
UL File No: E503249
UL CategoryControl: NITW2 NITW8
UL Model Number: OK Series
UL: Recognized type 12
Construction
- Carbon Steel
- Transparent plate (window) fixed by double adhesive acrilic film
- Galvanized Inner Stiffener Frame
- Door opens 120 degrees
- Door interchangeable right or left swing.
- Pour in place oil & water resistant gasket
- 4-point latching mechanism
- 3mm double bit key entry
Application
Enclosure components for OK Series Modular Enclosure designed to protect electrical and electronic equipment in industrial applications. Providing protection from dirt, dust, moisture, oil and other contaminants.
Finish
RAL 7035 light gray, textured powder coat finish
Industry Standards - (IS24)
- UL Component Recognized
