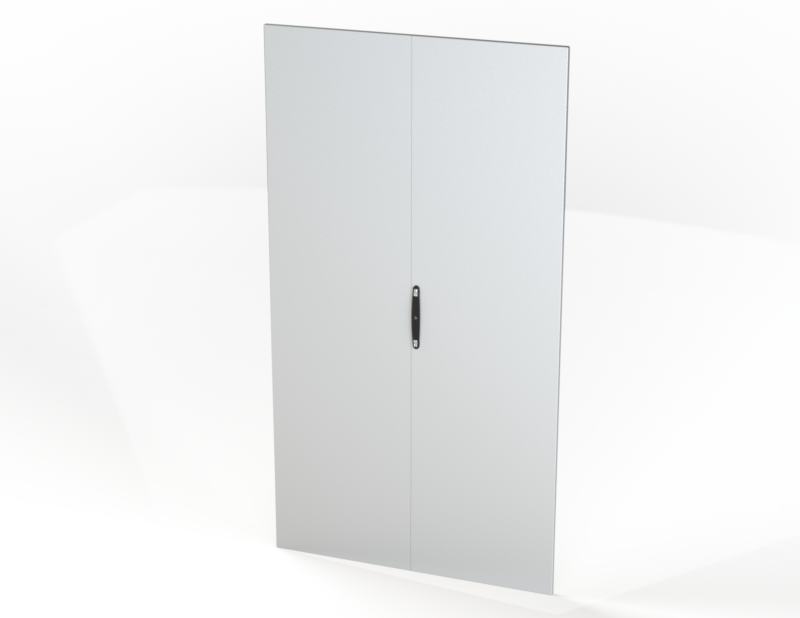

DBE22C

DBE22C

Product Specifications:


Part Number: DBE22C

Description: Double door 2200 X 1200 mm

Height: 85.90"

Width: 46.71"

Depth: 0.87"

Price Code: Q1

List Price: $900.50

Catalog Page: 999

Est. Ship Weight: 59.66 lbs

UL File No: E503249

UL CategoryControl: NITW2 NITW8

UL Model Number: OK Series

UL: Recognized type 12

Download CAD PackageAdd to Bill of MaterialPrint Page

Construction

  • Carbon Steel
  • Galvanized Inner Stiffener Frame
  • Door opens 120 degrees
  • Door interchangeable right or left swing
  • Pour in place oil & water resistant gasket
  • 4-point latching mechanism
  • 3mm double bit key entry
  • M6 ground stud top and bottom

Application

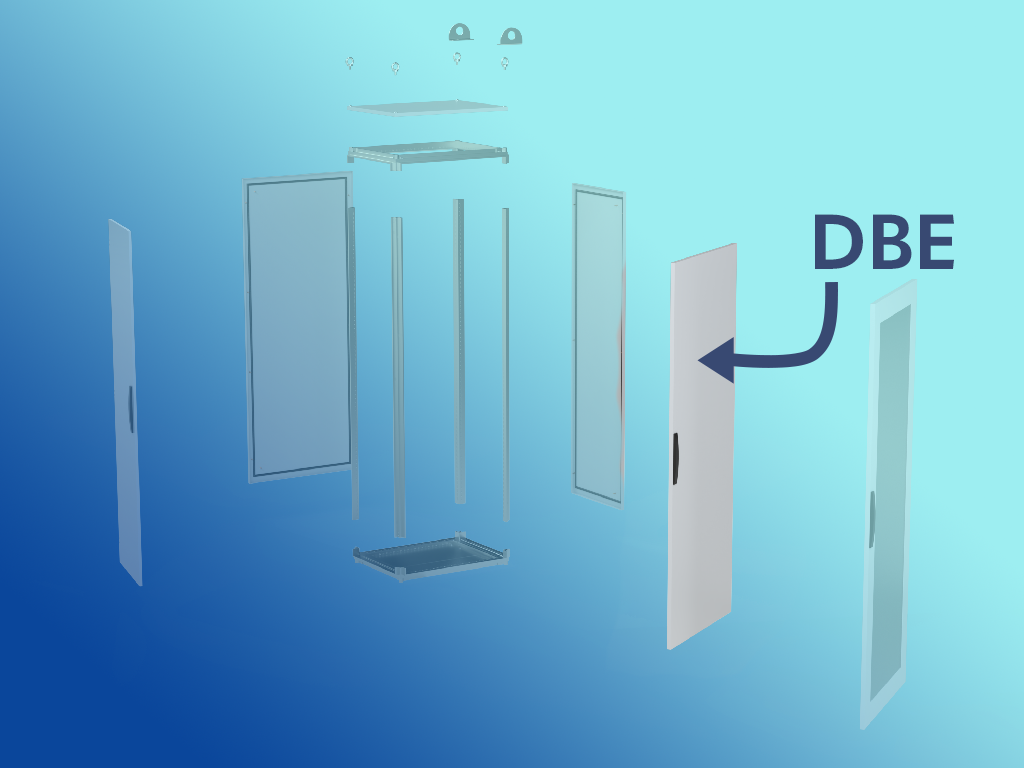

Door for OK Series

Finish

RAL 7035 light gray, textured powder coat finish

Industry Standards - (IS24)

  • UL Component Recognized
