DBE226
Product Specifications:

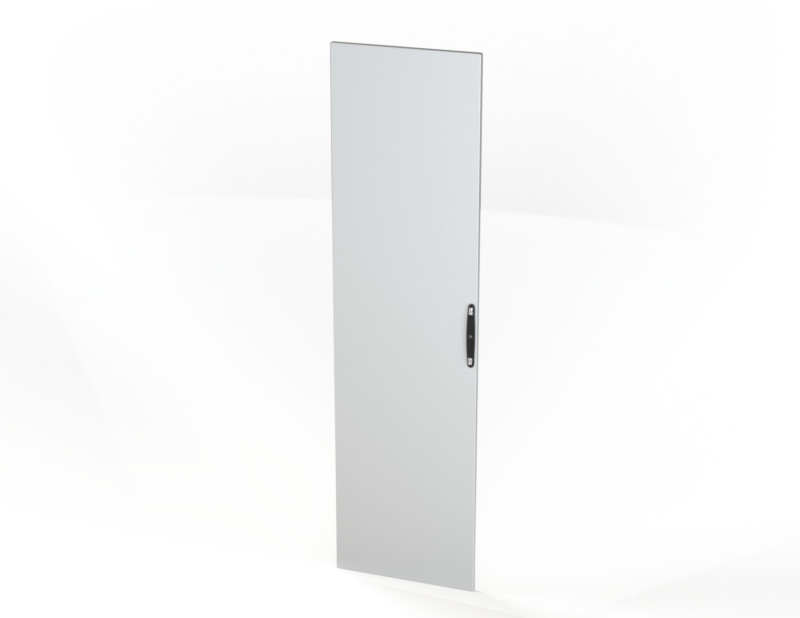

Part Number: DBE226
Description: Door 2200 X 600 mm
Height: 85.98"
Width: 23.31"
Depth: 0.87"
Price Code: Q1
List Price: $609.48
Catalog Page: 999
Est. Ship Weight: 60.19 lbs
UL File No: E503249
UL CategoryControl: NITW2 NITW8
UL Model Number: OK Series
UL: Recognized type 12
Construction
- Carbon Steel
- Galvanized Inner Stiffener Frame
- Door opens 120 degrees
- Door interchangeable right or left swing
- Pour in place oil & water resistant gasket
- 4-point latching mechanism
- 3mm double bit key entry
- M6 ground stud top and bottom
Application
Door for OK Series
Finish
RAL 7035 light gray, textured powder coat finish
Industry Standards - (IS24)
- UL Component Recognized
