DBE202D

DBE202D

Product Specifications:

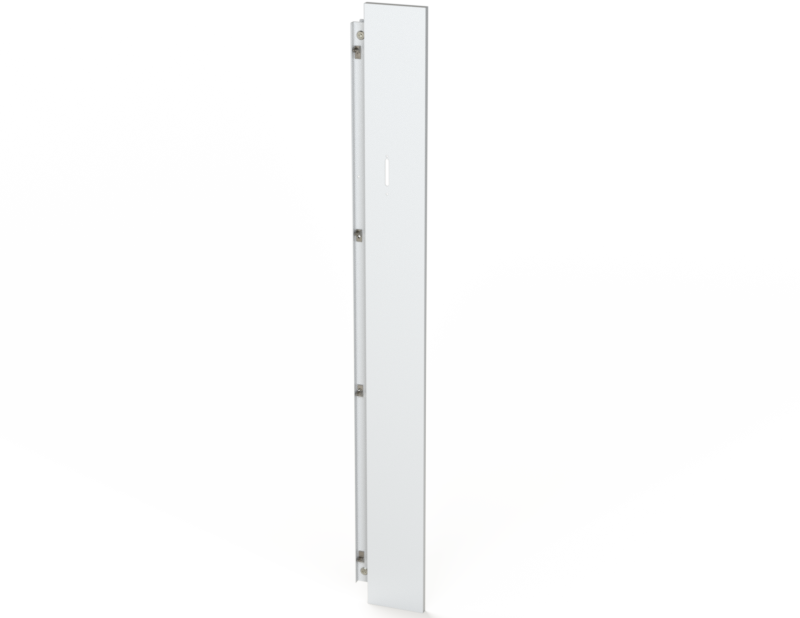

Part Number: DBE202D

Description: Right Disc. Door 2000 x 200 mm

Height: 78.03"

Width: 9.42"

Depth: 1.12"

Price Code: Q1

List Price: $462.32

Catalog Page: 999

Est. Ship Weight: 26.00 lbs

Download CAD PackageAdd to Bill of MaterialPrint Page

Construction

  • Carbon Steel
  • Galvanized Inner Stiffener Frame
  • Door opens 120°
  • Door interchangeable right or left swing
  • Pour in place oil & water resistant gasket
  • 4-point latching mechanism
  • 3mm double bit key entry
  • M6 ground stud top and bottom

Application

Disconnect Door (in conjunction with DBES Solid Door) for OK Series disconnect enclosures.

Finish

RAL 7035 light gray, textured powder coat finish

Industry Standards - (IS24)

  • UL Component Recognized

Accessories Included


SCE-DBES

SCE-DBES
OK Series Defeater Kit

Similar Part Numbers

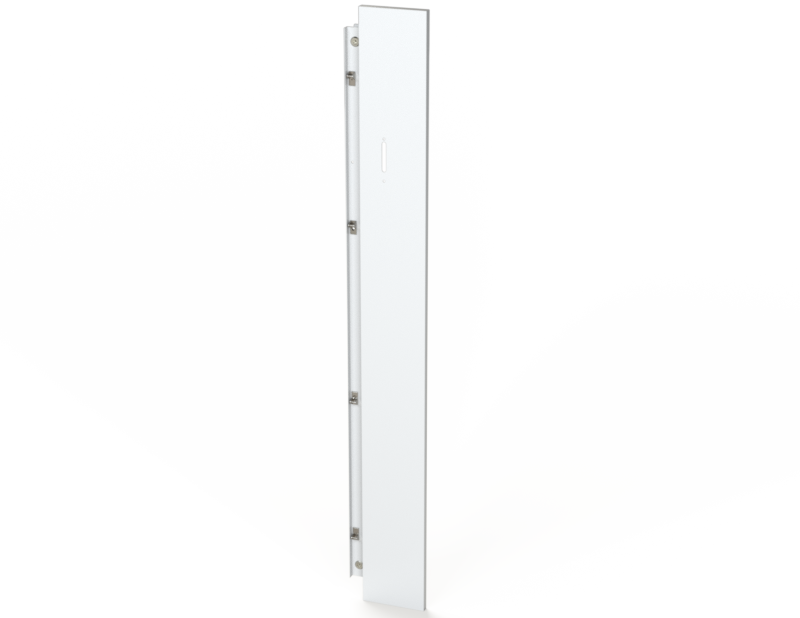

DBE182D

DBE182D
Right Disc. Door 1800 x 200 mm

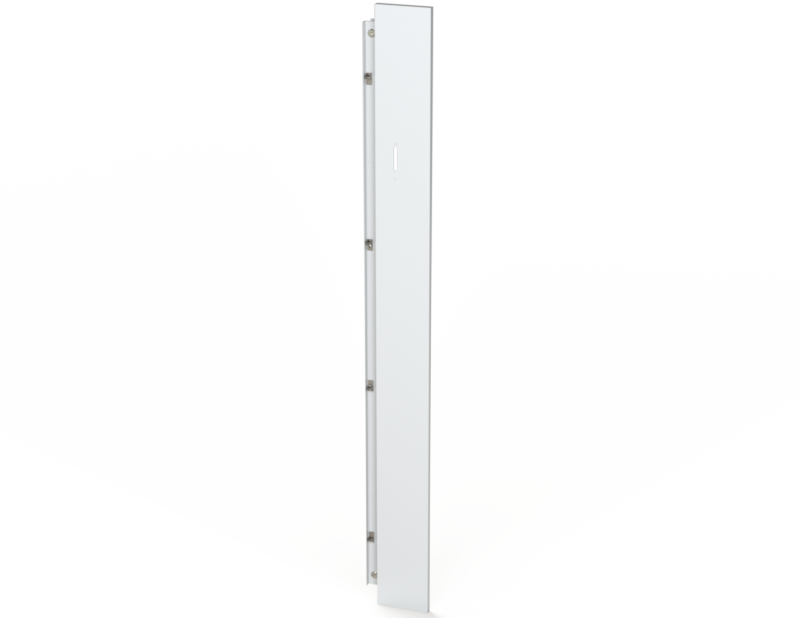

DBE222D

DBE222D
Right Disc. Door 2200 x 200 mm

Installation Information
