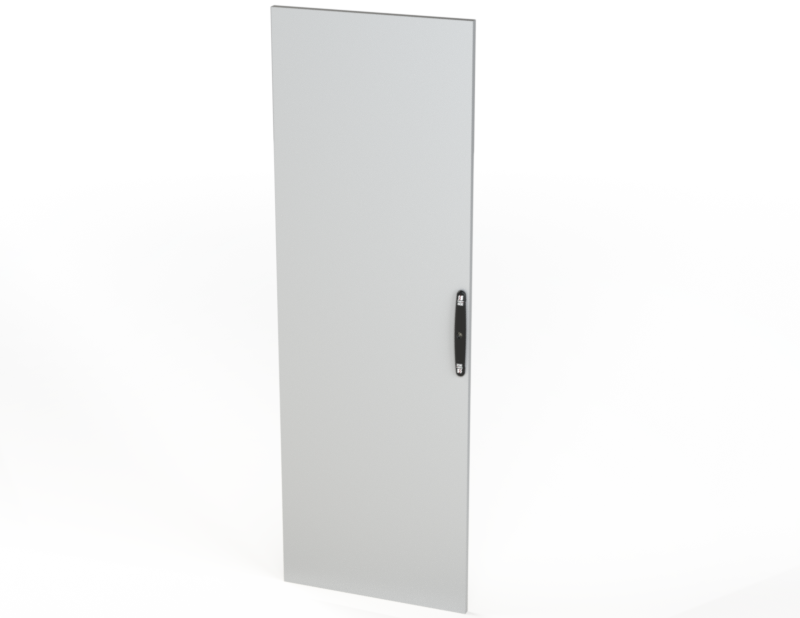

DBE186
Product Specifications:
Part Number: DBE186
Description: Door 1800 x 600mm
Height: 70.24"
Width: 23.31"
Depth: 0.87"
Price Code: Q1
List Price: $395.28
Catalog Page: 999
Est. Ship Weight: 53.00 lbs
UL File No: E503249
UL CategoryControl: NITW2 NITW8
UL Model Number: OK Series
UL: Recognized Type 12
Construction
- Carbon Steel
- Galvanized Inner Stiffener Frame
- Door opens 120 degrees
- Door interchangeable right or left swing
- Pour in place oil & water resistant gasket
- 4-point latching mechanism
- 3mm double bit key entry
- M6 ground stud top and bottom
Application
Door for OK Series
Finish
RAL 7035 light gray, textured powder coat finish
Industry Standards - (IS24)
- UL Component Recognized
