Product Specifications:

Part Number: SCE-72EL6036SS6FSD

Description: S.S. EL FSD Enclosure

Height: 72.00"

Width: 60.00"

Depth: 36.00"

Price Code: S4

List Price: $17,422.16

Catalog Page: 306

Est. Ship Weight: 730.00 lbs

Download CAD Package Add to Bill of Material Print Page

Construction

0.104 In. Stainless Steel Type 316/316L.
Removable and inchangeable doors.
Concealed hinges.
Seams continuously welded and ground smooth.
Strong rigid construction with stiffeners welded on backs of single access boxes.
Lifting eyes for easy handling.
Black zinc die cast keylocking/padlocking handle.
3-point latching mechanism.
Latch rods have ramp shoes for easier door closing.
Flange trough collar around all sides of door opening.
Removable center post.
Removable print pocket.
Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles.
Pour in place oil & water resistant gasket
Ground stud on door.
Provisions for light kit.

Application

Designed to house a variety of electrical and electronic controls and instruments. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provides protection from dust, dirt, water and oil. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.

For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

Type 316 Stainless Steel with #4 Brushed finish. Optional sub-panels powder coated white.

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

Optional panels and accessories available.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

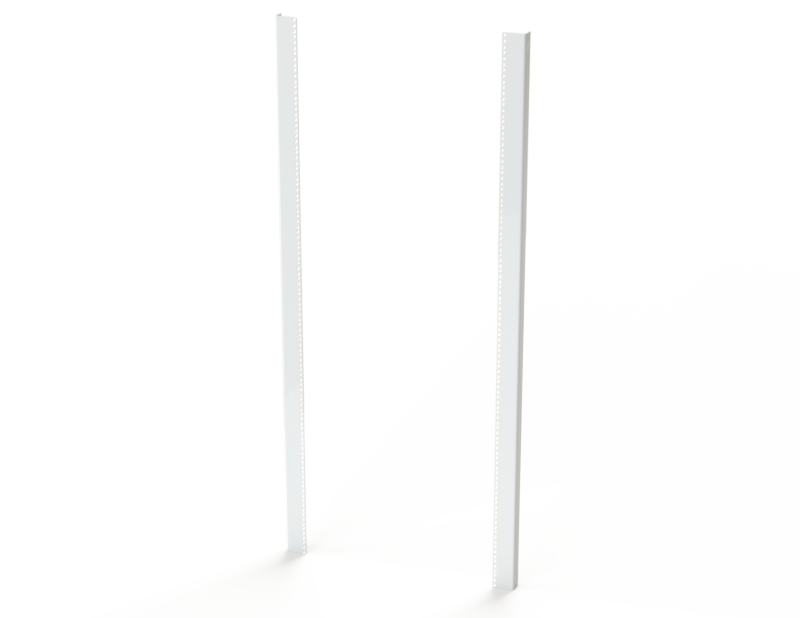

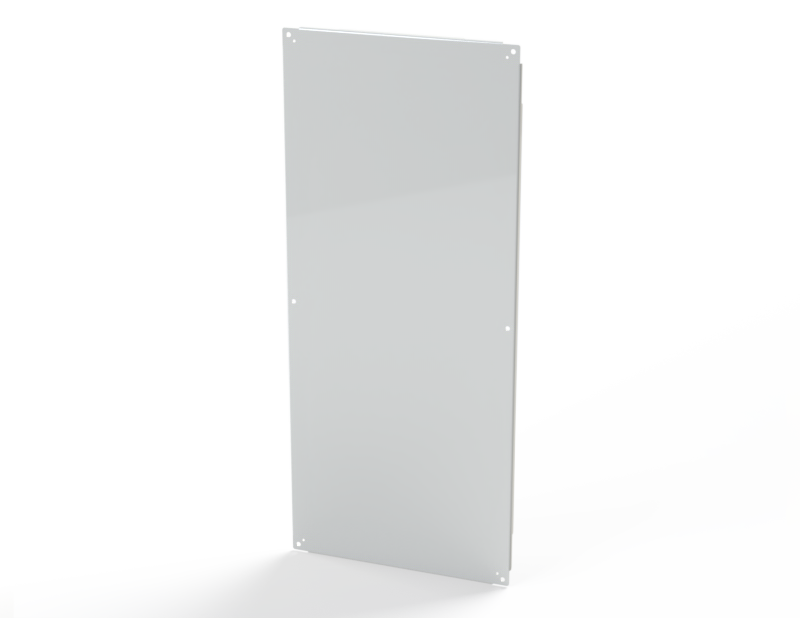

Optional Accessories
