SCE-DF72EL60

SCE-DF72EL60

Product Specifications:


Part Number: SCE-DF72EL60

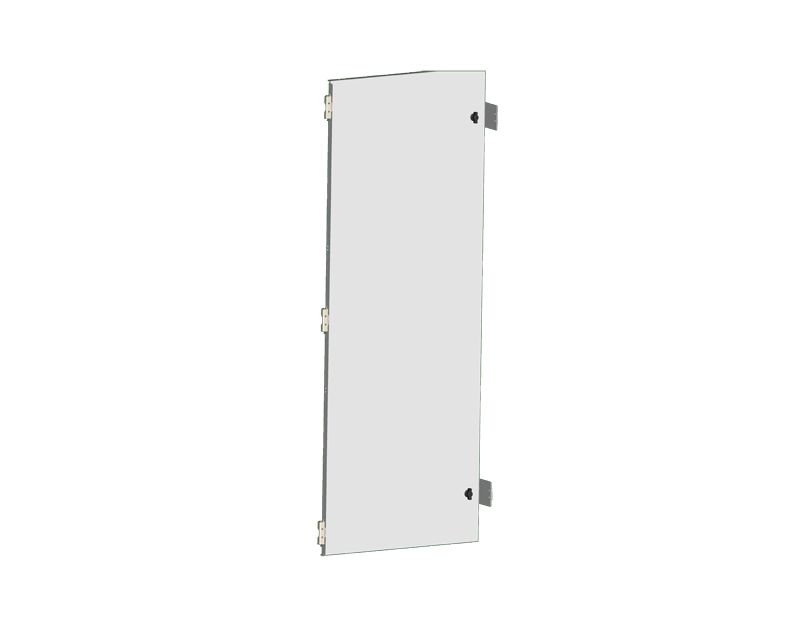

Description: Panel, Dead Front (Enviroline Floor Mount)

Height: 66.50"

Width: 25.38"

Depth: 0.83"

Price Code: P2

List Price: $491.50

Catalog Page: 451

Est. Ship Weight: 62.50 lbs

Download CAD PackageAdd to Bill of MaterialPrint Page

Construction

  • 0.075 In. carbon steel.

Application

Designed for installation into Enviroline Series Two-Door Floor-Mounted enclosures with center channel, to be installed in the front of an enclosure and to swing out of the enclosure. Kit consists of heavy gauge brackets, hinges, and mounting hardware. Installed by detaching door hinge from enclosure and installing swing out panel kit to the existing holes. Hinge is supplied with the enclosure. Made from steel. Kit contains one panel and all hardware for one dead front behind one door.

Finish

Powder Coated white inside and out.

Industry Standards - (IS17)

  • NEMA Not Applicable
  • UL Not Applicable
  • CSA N/A

Similar Part Numbers

SCE-DF60EL48

SCE-DF60EL48
Panel, Dead Front (Enviroline Floor Mount)

SCE-DF60EL60

SCE-DF60EL60
Panel, Dead Front (Enviroline Floor Mount)

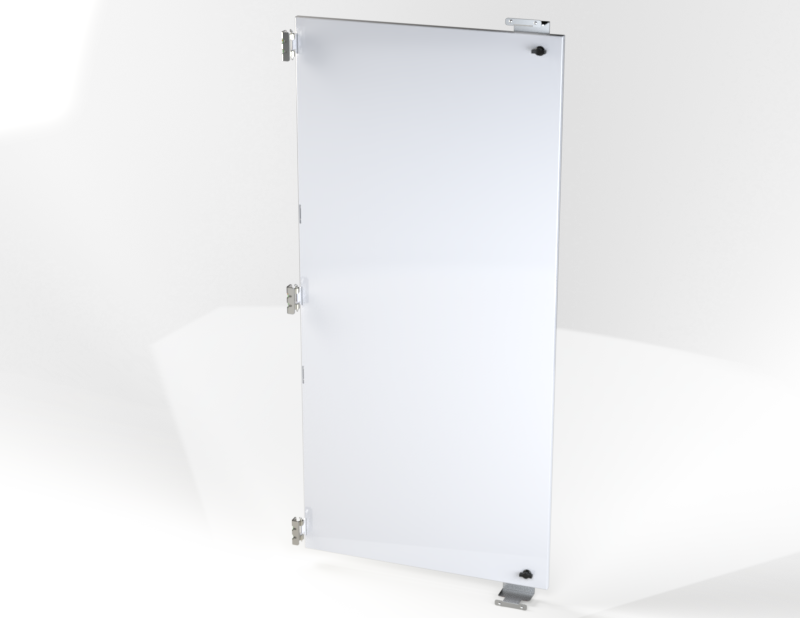

SCE-DF72EL72
