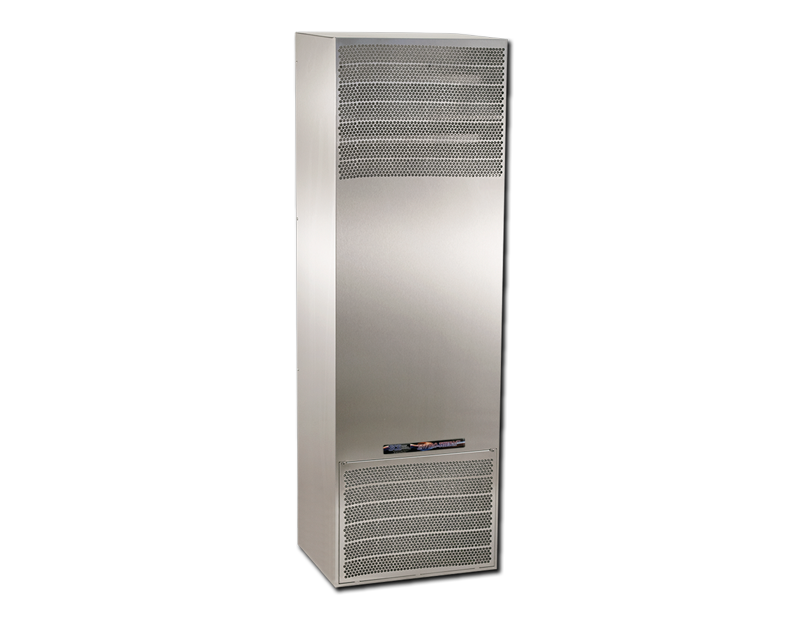

SCE-AC13650B460V3SS
Product Specifications:
Part Number: SCE-AC13650B460V3SS
Description: Conditioner, Air - 13650 BTU/Hr. 460 Volt
Height: 61.02"
Width: 18.00"
Depth: 13.98"
Price Code: P1
List Price: $12,525.17
Catalog Page: 364
Est. Ship Weight: 176.00 lbs
Model Number: OC57412182SG
Heating Capacity: 2000 Watts
Construction
- Closed Loop Cooling System
- Hermitically sealed Rotary Compressor
- Internal Components are Corrosion Resistant
- Specially designed Active Condensate System using PTC heater element
- Coils are designed as filterless units, fin spacing and hydrophobic Nano coating to help reduce chance of clogging
- Washable, Reusable 8 layer aluminum mesh filters included
- Captive screw fastened filter cover
- Integrated compressor heater for Low Ambient temperatures and up to 2000 watts of Enclosure Heat
- R134a Refrigerant - Chlorine-free and harmless to the environment
- Easy Mounting Flange hangers for installation included
- Digital Touchpad Programmable Controller, viewable and accessible from inside enclosure
- Controller Preset 95°F to cool - adjustable 68°F to 122°F
- Preset at 41°F to heat - adjustable -4°F to 122°F
- Temperature differential hysteresis 5.4°F
- High temp alarm Preset 131°F
- High performance ball bearing fans
- Door activated switch wiring provisions provided for easy installation
- Cage clamp terminal connector
- Oil and water resistant gaskets installed
Application
Enviro-Therm® Air Conditioners are designed with an internal closed loop system to provide protection from dust, oil and water. For indoor and outdoor application. Rugged, energy efficient,and reliable cooling system.
Finish
#4 brushed finish 304 Stainless Steel Cover and Frame
Industry Standards - (IS20)
- NEMA Type 3R, 4, 4X & 12
- UL Recognized Type 3R, 4, 4X & 12
- IEC 60529
- IP 56
Notes
UL File # SA32278
