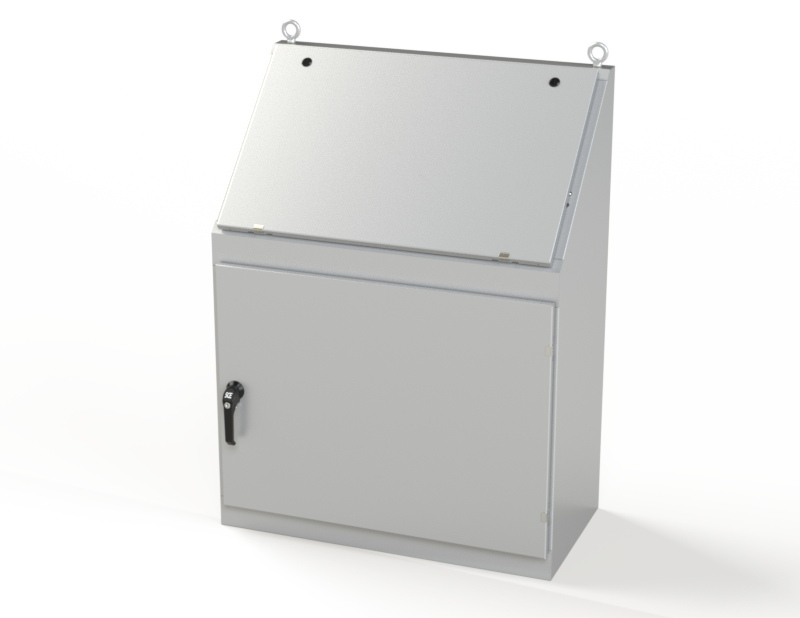

Part Number: SCE-936B
Description: Console (Series 9)
Price Code: C1
List Price: $1,486.22
Catalog Page: 10
Est. Ship Weight: 153.00 lbs
- 0.075 In. carbon steel.
- Sloping control panel attached with concealed hinge on bottom edge.
- Door opens to 90 degrees.
- Black zinc die cast keylocking/padlocking handle.
- 3-point latching mechanism.
- Seams continuously welded and ground smooth.
- Pour in place oil & water resistant gasket
- Interior print pocket.
- Optional back and side panels are mounted on collar studs.
- Removable eyebolts.
- Ground stud on door.
Designed for electronic controls and instruments. Equipment can be mounted on the sloping control panel door. Interior components mount to stationary panels. Provides protection from dirt, oil, dust and water.
ANSI-61 gray powder coat inside and out. Optional sub-panels are powder coated white.
Industry Standards - (IS3)
- NEMA Type 3R, 12 and Type 13
- UL Listed Type 3R and 12
- CSA Type 3R and 12
- IEC 60529
- IP 55
Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
