Saginaw Control and Engineering
95 Midland Road Saginaw, MI 48638-5770
(800) 234-6871 - Fax: (989) 799-4524
Part Number: SCE-808FW

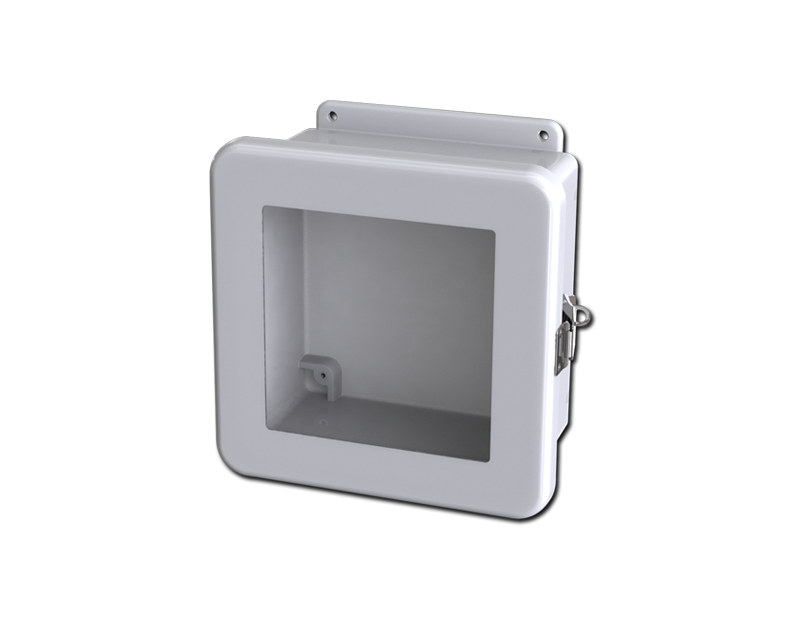

Description: Fiberglass Enclosure W/Window
Price Code: F1
List Price: $252.62
Catalog Page: 312
Est. Ship Weight: 4.00 lbs
- Fiberglass reinforced compression molded polyester.
- Continuous memory retaining gasket.
- Mounting strips molded in.
- Quick release padlock latch.
- Integral panel mounting inserts.
- Stainless steel continuous hinge.
- UVA acrylic bonded polycarbonate window.
Designed for indoor or outdoor use to house electronic controls, instruments and components in areas that may be regularly hosed down, are in very wet conditions, or are exposed to corrosive agents and require unrestricted viewing of gauges or controls. Provides protection from dust, dirt, oil, and water.
Light gray fiberglass. Optional sub-panels are marine grade aluminum.
Industry Standards - (IS5)
- NEMA Type 4, 4X, 12 and Type 13
- UL Listed Type 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
