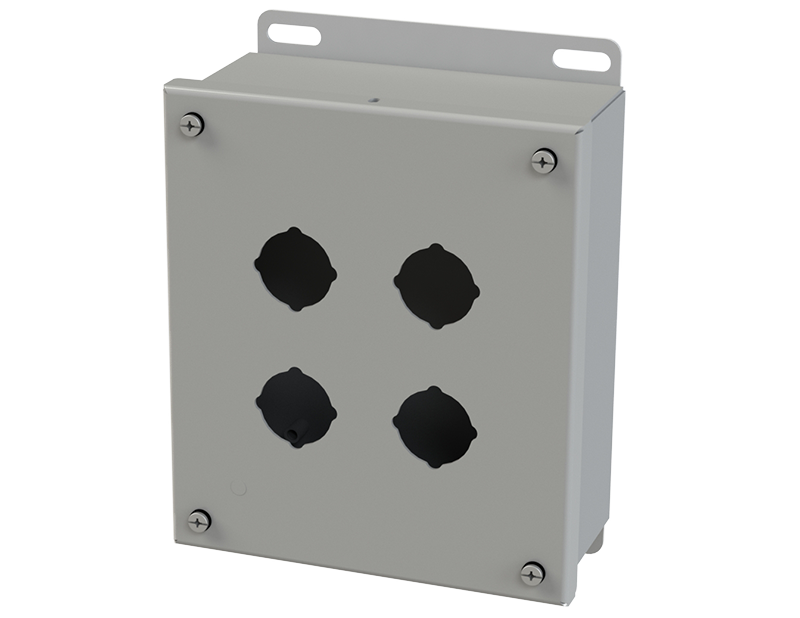

Part Number: SCE-4PB
Description: PB Enclosure
Price Code: A1
List Price: $62.70
Catalog Page: 46
Est. Ship Weight: 5.00 lbs
Mounting Centers (G): 10.75
Mounting Centers (H): 2.38
- 0.063 In. carbon steel.
- Continuously welded seams.
- Captivated cover screws thread into sealed wells.
- 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 1.20 In. (30.5 mm)
- Immediate removal of cover is still permitted.
- Pour in place oil & water resistant gasket
- Welded mounting provision top and bottom of back.
Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt, and oil.
ANSI-61 gray powder coating inside and out.
Industry Standards - (IS2)
- NEMA Type 4, 12 and Type 13
- UL Listed Type 4 and 12
- CSA Type 4 and 12
- IEC 60529
- IP 66
