SCE-20H1612QFGLP
Product Specifications:
Part Number: SCE-20H1612QFGLP

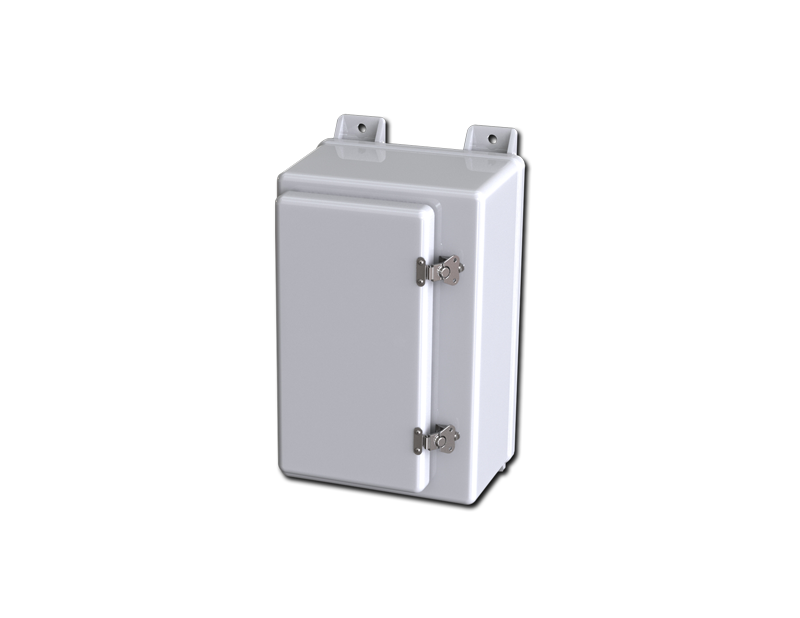

Description: Fiberglass Enclosure
Height: 22.75"
Width: 16.87"
Depth: 11.77"
Price Code: F1
List Price: $1,086.69
Catalog Page: 348
Est. Ship Weight: 22.00 lbs
Construction
- Fiberglass reinforced compression molded polyester.
- Pour in place oil & water resistant gasket.
- Mounting feet molded in.
- Quick release latches.
- Padlock hasp and staple.
- Integral panel mounting inserts.
- Stainless steel continuous hinge.
Application
Designed for indoor or outdoor use to house electrical and electronic controls, instruments and components in areas that may be regularly hosed down, are in very wet conditions, or are exposed to corrosive agents. Provides protection from dust, dirt, oil and water
For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
Light gray fiberglass. Optional sub-panels are marine grade aluminum.
Industry Standards - (IS5)
- NEMA Type 4, 4X, 12 and Type 13
- UL Listed Type 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
Notes
UL File E64358
