Part Number: P-R2-K2RF3-U450
Description: Port, Programming
Price Code: P4
List Price: Call for pricing.
Catalog Page: 357
Est. Ship Weight: 1.60 lbs

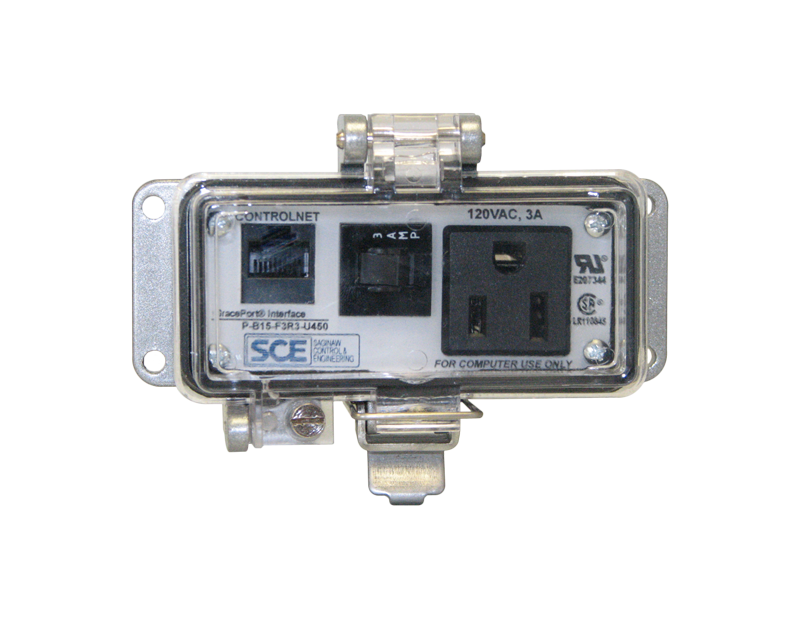

- Transparent polycarbonate sealed cover.
- Quick release padlocking latch.
- Available with Ethernet, USB, Control Net, Serial or Device Net data interface ports.

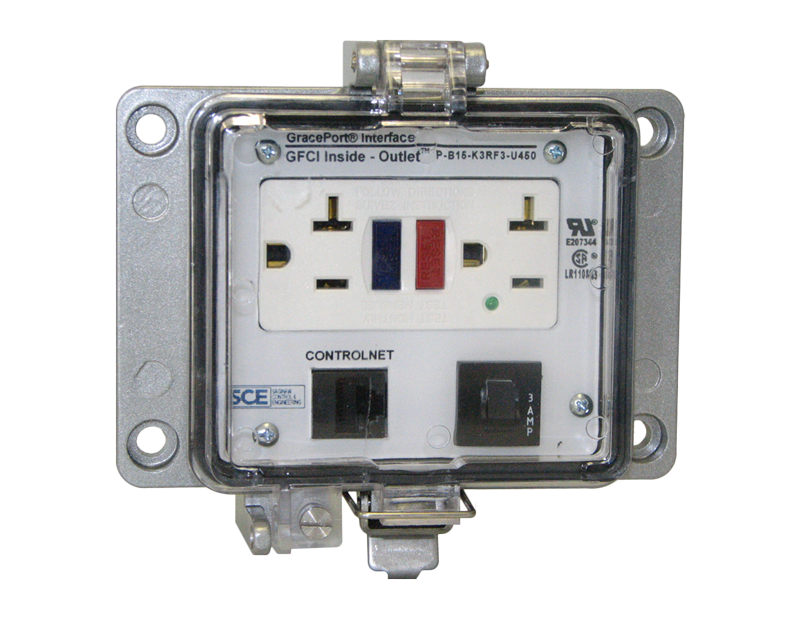

- Programming ports with Duplex are GFCI Ground fault circuit interrupters with exclusive three outlet design, GFCI Duplex outside the enclosure with GFCI Simplex inside.
- No GFCI on Programming ports with simplex only.
This product line is designed to help increase your compliance with NFPA 70E and reduce the risk of personal exposure of arc flash by reducing the need to access the enclosure, by bringing utility outlets and data interface ports outside the enclosures.
Powder coated Light Gray.
Industry Standards - (IS9)
- UL Component Recognized
- CSA Component Recognized
NFPA 70E Compliant
Ports with "foreign" Oulets are CE Compliant
*-***-*2***-U450 = UL Type 4X
*-***-*3***-U450 = UL Type 4
*-***-*4***-U450 = UL Type 12
P-R2-K2RF3-U450 = UL Type 4X
P-Q9-K3RF3-U450 = UL Type 4
P-Q9-K4RF4-U450 = UL Type 12
